Stone Block Cutting Machine

A large number of stone materials need to be used in construction projects. These stone materials will be put on market after cutting, polishing and other processing steps. There are many kinds of machine for stone processing, some for cutting and some for polishing. Today we are going to talk about stone block cutting machine, it’s a kind of machine for cutting marble and granite block materials. We know we get block materials from quarry through the help of stone mining machine. After this step, we will need a block cutting machine to cut these block materials into slabs. Nowadays, the regular block cutter machine is single beam block cutting machine which is a old design. Due to it’s single beam  design, the machine body will shaking when cutting block. In this case, the cutting will not very precision because of machine shaking and the cutting efficiency is not very high. In order to avoid above mentioned drawback of the old design block machine.

Inquiry Now

1. Introduce of stone block cutting machine
2. Features of stone block cutting machine
3. Why Choose MosCut Stone Block Cutting Machine
4. Structure of stone block cutting machine
5. Main machine of stone block cutting machine
6. Cross beam of stone block cutting machine
7. Rear transmission of stone block cutting machine
8. Details of Stone Block Cutting Machine
9. Specifications of stone block cutting machine
10. Working Video of Stone Block Cutting Machine

Block cutting machine is used for cutting marble and granite block. Stone Cutting machine has many features such as easy operation, powerful cutting etc.

Introduce of stone block cutting machine

A large number of stone materials need to be used in construction projects. These stone materials will be put on market after cutting, polishing and other processing steps. There are many kinds of machine for stone processing, some for cutting and some for polishing. Today we are going to talk about stone block cutting machine, it’s a kind of machine for cutting marble and granite block materials. We know we get block materials from quarry through the help of stone mining machine. After this step, we will need a block cutting machine to cut these block materials into slabs. Nowadays, the regular block cutter machine is single beam block cutting machine which is a old design. Due to it’s single beam  design, the machine body will shaking when cutting block. In this case, the cutting will not very precision because of machine shaking and the cutting efficiency is not very high. In order to avoid above mentioned drawback of the old design block machine, we have this new design stone block cutting machine. This machine is design with hydraulic parts on the machine head. Compare with single beam block cutting machine, this machine works more stable and higher cutting speed. It can match with different quantity and different size of cutting blades such as 7 big blade, 7 middle blade and 7 small blade or 10 big slab and 10 small blade etc. The number of blade combination can be changed according to size of block materials. In this case , we can cut different size of block size with only one set of block cutting machine.

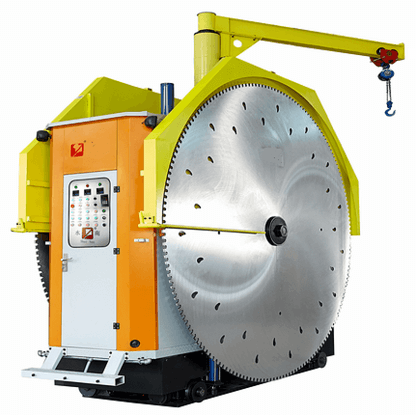

Stone-Hydraulic-Block-Cutting-Machine-2024
Stone-Hydraulic-Block-Cutting-Machine-2024

Features of stone block cutting machine

This block cutting machine adopts four column hydraulic locking structure, which has the characteristics of good overall rigidity, small clearance, reducing machine shaking produced in the cutting process, high accuracy and flatness of the slab cutting, and at the same time improving life time of diamond blade.

6 big strong pilllars on Stone Block Cutting Machine
6 big strong pilllars on Stone Block Cutting Machine

Why Choose MosCut Stone Block Cutting Machine

MosCut Stone Machine is found in 2003, locates in Xiamen Cify, Fujian,China. Which is one of the most busy port for exporting of stone and stone machine. We are a professional supplier of stone machine such as block cutting machine, bridge saw machine, stone mining machine, CNC Stone Router, stone polishing machine etc. Our company goal is to make stone cutting easy. We hire a lot of experienced mechanic and engineer, we pay a lot of time and money annual in the research and develop of stone block cutting machine. Thanks to our hard working and professional services, we have more and more customers from all over the world. Our stone block cutting machine has been exported to a lot of countries such as USA, Canada, Italy, Australia, UAE, Vietnam, Turkey etc. We will continue working to provide better quality of stone block cutting machine.

Cutting Blades on Stone Block Cutting Machine-1
Cutting Blades on Stone Block Cutting Machine-1

Structure of stone block cutting machine

Stone block cutting machine is composed of main machine, two longitudinal beams, rear transmission, and electric control system. The machine machine of block cutting machine is installed on two longitudinal beam, The rear transmission part is connected with left and right longitudinal beams and arranged at the rear side of the main machine part, The rear transmission part controls the front / rear movement of the main machine part along the left and right longitudinal beam parts through split screw rod in longitudinal beam part.

Cutting Blades on Stone Block Cutting Machine-2
Cutting Blades on Stone Block Cutting Machine-2

Main machine of stone block cutting machine

The main machine part on stone block cutting machine includes crossbeam, lifting guide post, up plate, down plate, spindle box, lifting oil cylinder, main motor, pulley and spindle box. The two ends of cross beam are erected on left and right longitudinal beams, which are provided with four lifting guide pillars. The upper end of the lifting guide pillar is provided with an upper plate, and the lower end of the lifting guide pillar is provided with a lower plate. Bottom of the lower plate is fixedly provided with a spindle box, and the spindle box is internally provided with a spindle. The crossbeam is connected with a lifting oil cylinder, and the end of the piston rod of the lifting oil cylinder is fixedly connected with the upper plate and / or the lower plate. The motor of stone block cutting machine is fixed on the upper end of the upper plate, the shaft end of the motor is provided with a belt pulley, the belt pulley realizes the transmission connection with the main shaft in the main shaft box through the belt, and the outer shaft end of the main shaft is fixedly connected with a plurality of saw blades.

Cross beam of stone block cutting machine

The longitudinal beam part of stone block cutting machine comprises a longitudinal beam and a slice screw rod, the left and right longitudinal beams are respectively installed on the cement foundation to fix block cutting machine, and the longitudinal beam is internally provided with a slice screw rod.

Linear Guide on Stone Block Cutting Machine
Linear Guide on Stone Block Cutting Machine

Rear transmission of stone block cutting machine

The rear transmission part includes a reducer, a transmission shaft and a bevel gear. The reducer and the inner end of the transmission shaft realize transmission connection. The outer end of the transmission shaft is connected with a bevel gear. The bevel gear can realize hissing transmission with the gear on the split screw rod in the longitudinal beam.

Stone Block Cutting Machine Details-1
Stone Block Cutting Machine Details-1

Details of Stone Block Cutting Machine

Stone Hydraulic Block Cutting Machine
Stone Hydraulic Block Cutting Machine
Stone Block Cutting Machine
Stone Block Cutting Machine
Stone Block Cutting Machine
Stone Block Cutting Machine
MosCut Stone Block Cutting Machine
MosCut Stone Block Cutting Machine
Stone Block Cutting Machine Details-2
Stone Block Cutting Machine Details-2
Stone Block Cutting Machine Details-3
Stone Block Cutting Machine Details-3

Specifications of stone block cutting machine

Item NameUnitValue
Blade Diametermm2500
Max Up and downmm1100
Max Cutting Lengthmm3200
Max Cutting Widthmm2200
SlicingMm2300
Length of bridgeMm7500
Main MotorKW45
Machine overallmm7500*4000*4200
WeightT11

Working Video of Stone Block Cutting Machine
