The global mining industry is rapidly transitioning towards zero-blasting extraction. According to safety and environmental guidelines published by the Mine Safety and Health Administration (MSHA), eliminating explosives is the most effective protocol for preventing unpredictable flyrock incidents, reducing seismic ground vibrations, and preserving the geological stability of the quarry face. Mechanical cutting is not just safer; it is the new standard for resource efficiency.
A premier quartzite quarry operator in Espírito Santo, Brazil, faced severe yield loss due to their highly fractured, ultra-hard mountain deposits. Traditional blasting yielded less than 40% usable blocks. By deploying a fleet of MosCut Quarry Wire Saw Machines equipped with intelligent VFD tensioning, they completely preserved the structural integrity of the stone. Within six months, their export-grade block yield doubled, allowing them to recover their entire machinery investment while maintaining a flawless safety record.
Core Advantages of the MosCut Wire Saw
Engineered for extreme geological environments, our wire saw machine converts unpredictable mountainsides into standardized, high-value assets.360° Omnidirectional Cutting
Our advanced 360-degree rotating flywheel and guiding pulley system allow the machine to execute horizontal undercuts, vertical separations, and complex diagonal blind cuts. It adapts to the mountain’s natural geometry, not the other way around.
Limitless angles: The 360-degree rotating flywheel allows for complex horizontal and vertical cuts without repositioning.
Wireless Remote Safety
Physical distance guarantees safety. Our industrial-grade wireless remote control allows operators to manage the cutting speed, tension, and water flow from a safe vantage point up to 50 meters away, completely clear of the active rock face.
Safe separation: Operators maintain full control of the machine from up to 50 meters away using the industrial wireless remote.
Intelligent VFD Control System
The brain of the operation. Our Dual-Inverter PLC system monitors the main motor’s amp draw hundreds of times per second. It automatically adjusts the machine’s backward travel speed to maintain constant wire tension, drastically reducing the risk of sudden wire snaps.
Automated tensioning: The dual-inverter PLC cabinet prevents wire snaps by intelligently adjusting pullback speed in real-time.
35kW & 45kW Marble Wire Saw Machines
Compact and highly efficient. These models are the perfect choice for medium-soft stone extraction and precise block squaring in the factory yard. They offer exceptional cutting speed with significantly lower daily energy consumption.
Compact efficiency: The 35kW and 45kW models are perfectly sized for precision marble extraction and block squaring.
55kW Quarry Wire Saw Machine
The industry standard. The 55kW model perfectly balances high-speed extraction with power efficiency. It is the workhorse for most global dimensional stone quarries handling medium-to-hard granite formations.
The industry standard: The 55kW machine delivers the perfect balance of cutting speed and energy efficiency for granite quarries.
75kW Heavy-Duty Granite Wire Saw
Uncompromising power. Built with heavy-duty reinforced steel chassis and high-torque motors, the 75kW machine is designed to conquer massive primary cuts in ultra-hard Class-1 granite deposits.
Maximum torque: The 75kW heavy-duty model powers through the hardest Class-1 granite formations with relentless reliability.
Rail-Mounted Wire Saw Systems
The traditional and highly stable choice for flat quarry floors. Moving along a precision-leveled steel track, it ensures absolute linear consistency, making it ideal for standardizing massive horizontal cuts.
Absolute precision: Steel rail-mounted systems ensure perfectly straight and level tracking across flat quarry floors.
Crawler-Mounted Wire Saw Machines
The ultimate off-road solution. Featuring a self-propelled tank-style track system, the crawler model effortlessly navigates steep, roadless mountain terrains, drastically reducing setup time in rugged environments.
Off-road mastery: The self-propelled crawler tracks navigate steep, uneven mountain terrain effortlessly, saving hours of setup time.
Precision Guiding Pulleys for Complex Vector Cuts
Repositioning a heavy wire saw machine mid-operation costs valuable time and labor. Our high-strength guiding pulley system completely eliminates this inefficiency. When your cutting plane needs to change direction or navigate a blind corner, operators can simply anchor a set of independent guiding pulleys directly into the rock face. By routing the diamond wire through these pulleys, you can instantly alter the cutting angle without ever moving the main power unit. This drastically reduces setup time and enables highly complex, multi-tiered block extraction.
Vector adjustment: Freestanding guiding pulleys allow operators to redirect the cutting path instantly without repositioning the main machine.
Watch the Machine in Action
Witness the raw power and silent precision of the MosCut wire saw effortlessly slicing through solid, high-hardness granite.Technical Specifications & Capacity
Transparent, industrial-grade specifications designed to help your engineering team match the right power output to your specific stone hardness.| Model | MC-SJ37 | MC-SJ45 | MC-SJ55 | MC-SJ75 |
|---|---|---|---|---|
| Main Motor Power | 37kW | 45kW | 55kW | 75kW |
| Flywheel Size | 600mm or 800mm | 800mm | 850mm | 850mm |
| Wire Length | 20-60m | 20-80m | 20-120m | 20-150m |
| Line Speed | 0-30m/s | 0-40m/s | 0-40m/s | 0-40m/s |
| Moving Speed | 0-40m/h | 0-90m/h | 0-150m/h | 0-150m/h |
| Lateral moving distance | 540mm | 540mm | 540mm | 540mm |
| Length of rails | 7m | 7m | 7m | 7m |
| Max. Lateral cutting | 1700mm | 1700mm | 1900mm | 2050mm |
| Power of walking motor | 1.5kW (2Hp) | 1.5kW (2Hp) | 1.5kW (2Hp) | 1.5kW (2Hp) |
| Weight | 2t | 2.4t | 3.0t | 3.4t |
| Dimension | 1500*1150*1350mm | 1500*1150*1350mm | 1850*1450*1500mm | 1850*1450*1500mm |
| Machine Head Rotation | 360 degree | 360 degree | 360 degree | 360 degree |
| Working Temperature | -15 to +45 degree centigrade | -15 to +45 degree centigrade | -15 to +45 degree centigrade | -15 to +45 degree centigrade |
| Working Humidity | <95% no frost | <95% no frost | <95% no frost | <95% no frost |
The Consumable Core: Rubber Diamond Wire Saw
The machine provides the muscle, but the rubber rope saw provides the bite. We engineer our vulcanized rubber wire to withstand the brutal friction of open-pit extraction.Vulcanized Rubber Injection
For open-pit quarrying, standard plastic or spring wire will fail. Our wire is injected with high-density vulcanized rubber. This creates an impenetrable seal that prevents abrasive slurry and water from rusting the inner steel cable, ensuring maximum safety and flexibility under immense traction.
Extreme durability: Vulcanized rubber completely seals the steel core, providing unmatched protection against abrasive quarry slurry.
Bead Diameters & Spacing
We provide standard 11mm and 11.5mm diameter diamond beads, spaced precisely at 37 or 40 beads per meter. This optimized spacing allows for aggressive rock removal while maintaining sufficient gaps for water cooling and slurry flushing.
Optimized bead geometry: Precision spacing and 11mm/11.5mm bead diameters ensure aggressive cutting and efficient water cooling.
Granite vs. Marble Formulations
Not all stones are cut equal. We formulate distinct metal bonds and diamond concentrations. Our granite wire utilizes a tougher matrix to resist high abrasion, while our marble wire is designed for high-speed, free-cutting performance to maximize daily yield.
Targeted formulations: Specialized metal bonds ensure peak cutting efficiency whether you are extracting soft marble or hard granite.
Lifespan and Cutting Efficiency
By pairing our intelligent VFD machines with our premium rubber wire, quarry operators achieve unparalleled economic efficiency. Expect maximum square meters of stone extracted per meter of wire, drastically reducing your overall consumable costs.
Maximum ROI: Pairing our intelligent machines with premium rubber wire guarantees the highest square-meter output per meter of wire.
The Essential Prelude: Down-The-Hole (DTH) Pneumatic Drilling Machine
Precision wire sawing begins beneath the surface. Our pneumatic DTH drilling machines engineer the critical intersecting pilot holes that make zero-blasting extraction possible.Intersecting Pilot Holes for Precise Wire Threading
Before a single meter of stone is cut, a perfect pathway must be established. By drilling a vertical hole from the top and a horizontal hole at the base of the rock face, our machine ensures they meet at a precise 90-degree angle. Our DTH drilling equipment is engineered to create the foundational intersecting pilot holes required for wire saw setup.This seamless intersection allows for the rapid threading of the diamond wire, turning a complex mountain face into a ready-to-cut production line in minutes.
Check DTH Driller Machine Details
The geometry of success: Precision-aligned pilot holes create the 90-degree intersection necessary for threading the diamond rope saw.
Versatile Applications of the Wire Saw Machine
From luxury dimensional stone extraction to heavy civil engineering, the wire saw is the ultimate tool for deep, limitless separation.Granite Quarry Extraction
Slicing through massive igneous rock formations with precision, maximizing the output of standardized, export-grade granite blocks.
Granite mastery: Achieving flawless separation and massive block yields in high-hardness igneous rock environments.
Marble Quarry Extraction
Executing clean, damage-free separation cuts to preserve the structural integrity and aesthetic value of luxury marble deposits.
Preserving value: Zero-blasting extraction protects luxury marble blocks from micro-fractures, maximizing export value.
Travertine & Sedimentary Stone
Highly effective in softer, porous stones where explosive blasting would otherwise shatter the valuable material.
Gentle extraction: Ideal for porous stones, the wire saw prevents the shattering commonly associated with explosive methods.
Reinforced Concrete & Bridge Pier Demolition
A powerhouse for civil engineering. The wire saw easily cuts through heavy steel rebar and thick concrete foundations for safe, vibration-free demolition.
Civil engineering powerhouse: Effortlessly slicing through thick concrete foundations and heavy steel rebar without structural vibrations.
Why Choose MosCut as Your Quarry Partner
Purchasing heavy quarrying machinery is a major investment. You need a partner capable of delivering relentless reliability and uncompromised support.State-of-the-Art Factory Capabilities
With over 20 years of metallurgical and heavy machinery manufacturing experience, our ISO-certified facilities produce machines using military-grade steel and globally trusted electronics (Schneider, Mitsubishi), ensuring dust-proof, explosive-free quality control.
Military-grade manufacturing: Over 20 years of expertise goes into fabricating our robust, ISO-certified stone cutting machinery.
Global Supply Chain & Rapid Shipping
We maintain a massive inventory of standard machines and diamond wire consumables. Whether your quarry is located in the mountains of South America or the deserts of Africa, our robust logistics network guarantees lightning-fast dispatch.
Global reach: Extensive inventory and streamlined logistics guarantee rapid delivery of machines and wire consumables worldwide.
Complete Turnkey Solutions & On-Site Training
We don’t just sell equipment; we deliver capability. We provide comprehensive turnkey packages and deploy senior engineers directly to your overseas quarry. We train your staff hands-on in machine setup, wire threading, and safe operational protocols.
Hands-on support: Our senior engineers travel globally to provide comprehensive on-site commissioning and operational training.
24/7 After-Sales Engineering Support
Downtime burns money. Our global support team is available 24/7 for video troubleshooting and rapid remote diagnostics. Critical spare parts and VFD relays are dispatched via DHL Express to keep your operations running continuously.
Always online: Global 24/7 technical support and rapid parts dispatch ensure your quarry keeps running around the clock.
Global Customer Success Stories
See how quarry managers worldwide are replacing explosives with MosCut technology to double their export-grade block yield.
India: Granite Undercutting
Deployed multiple 75kW units to execute massive horizontal bottom cuts, standardizing block output for a major export facility.
Brazil: High-Altitude Agility
Utilized our Crawler-Mounted Wire Saws to conquer steep, roadless quartzite mountains, eliminating the need for heavy excavators.
Egypt: Heat-Resistant Extraction
Continuous 24-hour operation in 50°C desert heat, proving the ultimate reliability of our VFD cooling systems.
Italy: Zero-Damage Marble
Achieved a 95% premium block yield in luxury white marble by replacing micro-blasting with precision mechanical cutting.
Explore More Quarry Insights
Expand your operational expertise with our latest technical guides and global extraction case studies.
Understanding VFD Tensioning
Dive deep into how Dual-Inverter PLC systems prevent wire snaps, maintain constant tension, and extend consumable life.
Read More
Mastering DTH Pilot Hole Drilling
The ultimate guide to achieving perfect 90-degree intersecting pilot holes for rapid diamond wire threading.
Read More

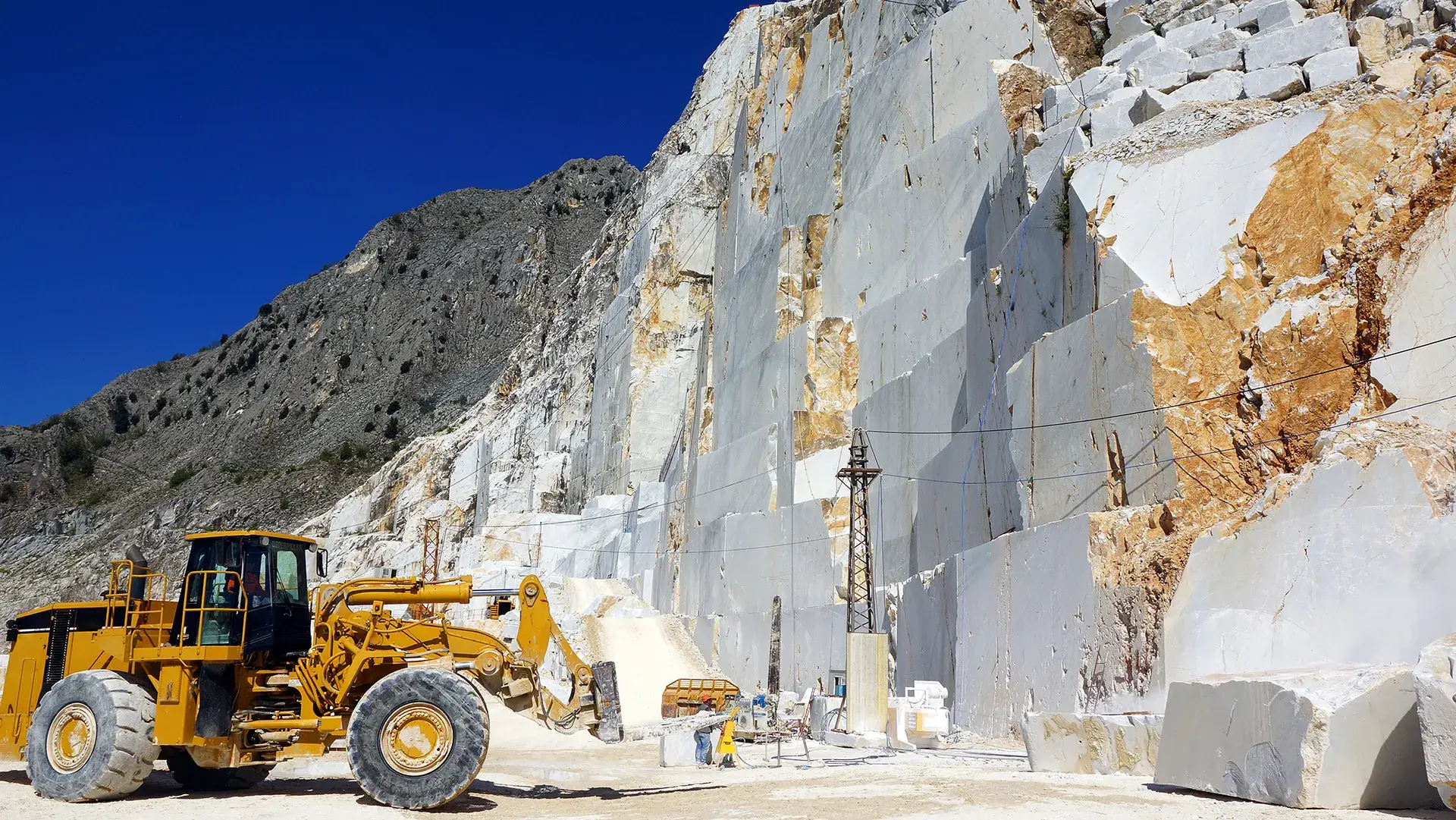

The Shift to Zero-Blasting Extraction
Why modern quarries are abandoning industrial explosives for eco-friendly, high-yield mechanical wire saw cutting.
Read More
Calculating ROI for 75kW Wire Saws
Analyze the cost-per-square-meter and export-grade block yield improvements of heavy-duty granite extraction.
Read MoreNeed More Stone Extraction Solutions?
From high-yield chain saws to precision double blade cutters, MosCut provides a complete ecosystem of zero-blasting quarrying equipment tailored to your specific geological challenges.
Explore All Quarry MachinesFrequently Asked Questions on Wire Saw Specifications
Answering critical pre-purchase inquiries regarding power requirements, setup limitations, and operational logistics.1. Why is the rubber wire saw required for quarrying instead of plastic?
Vulcanized rubber creates a waterproof and dirt-proof seal around the inner steel cable. In open-pit quarries, abrasive slurry quickly destroys plastic wire, leading to rust and snapping. Rubber ensures long-lasting flexibility and durability.
2. What is the difference between the 55kW and 75kW models?
The 55kW model is the industry standard for medium-to-hard stone with excellent power efficiency. The 75kW provides higher torque and pulling force, making it specifically suited for extremely hard Class-1 granite or massive, deep cuts.
3. Can the main flywheel rotate for both horizontal and vertical cuts?
Yes, the machine’s flywheel head can manually or electrically rotate a full 360 degrees. This allows the operator to execute undercuts, vertical slices, and diagonal cuts without repositioning the main track.
4. What power supply is required to operate these machines?
They require an industrial 3-phase electrical supply. For a 75kW machine operating off-grid, we strongly recommend a diesel generator with a capacity of at least 150kVA to handle the high startup torque.
5. How does the VFD (Variable Frequency Drive) prevent wire snapping?
The VFD continuously monitors the main motor’s amp draw. If the wire encounters a hard quartz pocket or gets pinched, the amp load spikes. The PLC instantly reduces the backward travel speed to lower the tension before the wire breaks.
6. How much water is required for cooling the diamond wire?
A constant flow of 30 to 50 liters per minute is required. The water must be directed exactly where the wire enters the cut to prevent the rubber injection from melting due to extreme frictional heat.
7. What are the advantages of the crawler-mounted model?
The crawler model is self-propelled via a tank-style track. It is designed for uneven, steep mountain terrain where laying traditional flat steel rails is too time-consuming or dangerous.
8. Do you provide installation and training at our overseas quarry?
Yes, we offer complete turnkey solutions. We can dispatch senior technicians to your site anywhere in the world to commission the machines, lay the tracks, and train your staff on safe operation and maintenance.
9. Can this machine be used to demolish old concrete bridges?
Absolutely. Our wire saws are widely used in civil engineering. When equipped with specialized reinforced concrete diamond wire, they can slice through thick foundations and heavy steel rebar without generating dangerous vibrations.
10. What is the standard lifespan of the rubber liners on the flywheel?
High-quality rubber liners typically last between 300 to 500 hours of active cutting. They must be inspected weekly and replaced when a deep groove forms to prevent the wire from vibrating or jumping off the wheel.
