Sandstone & Limestone Quarry Cutting Machine
Extracting sedimentary rock efficiently requires a delicate balance between aggressive cutting speed and structural preservation. According to the operational definitions in ASTM C119 (Standard Terminology Relating to Dimension Stone), the commercial value of soft stones like sandstone and limestone is highly dependent on geometric precision and edge integrity. Traditional manual splitting often fails this standard, generating massive amounts of unusable rubble. Mechanized direct-to-block extraction is the definitive engineering solution for maximizing volumetric yield in soft stone quarries.
A massive commercial red sandstone quarry in Rajasthan, India, perfectly demonstrates the financial impact of this transition. Historically relying on manual drilling and explosive splitting, their net block yield rarely exceeded 60%. Worse, the extracted stones were highly irregular, requiring expensive and time-consuming secondary squaring at the factory. By deploying MosCut Sandstone Cutting Machines, the quarry achieved simultaneous vertical and horizontal cutting. The yield immediately skyrocketed to 95%, producing standardized ‘brick-style’ blocks ready for immediate export, while slashing their manual labor costs by over 80%.
Direct-to-Block Extraction: Pain Points Solved
Soft stone extraction requires a delicate balance between speed and structural integrity. Our machines eliminate the inefficiencies of traditional manual methods.📉
Low Yield from Manual Splitting
Driving wedges and using expanding grout often causes soft sedimentary rock to fracture unpredictably. Our machine utilizes smooth diamond-blade friction, preventing internal cracking and eliminating the massive piles of wasted rubble generated by manual extraction.
💸
High Cost of Secondary Squaring
Irregular blocks must be transported to a factory and sliced down into rectangles, wasting time, transport fuel, and stone volume. Our machine cuts perfect 90-degree corners directly in the pit, rendering secondary squaring completely obsolete.
👷
Labor Intensive Operations
Managing dozens of workers to drill, wedge, and pry stone is slow and inherently dangerous. The MosCut machine automates the entire process. A single trained operator managing the control panel can out-produce an entire crew of manual laborers.
📏
Inconsistent Block Dimensions
For architectural sandstone, uniform sizing is critical. Guided by heavy-duty steel rails, the machine guarantees zero lateral deviation. Every single block harvested is geometrically identical, meeting the strictest international dimensional standards.
The Advantage: Vertical + Horizontal Cutting
Unlike traditional cutters, this machine integrates vertical and horizontal blades to complete the extraction cycle in a single platform.Simultaneous Vertical & Horizontal Cutting

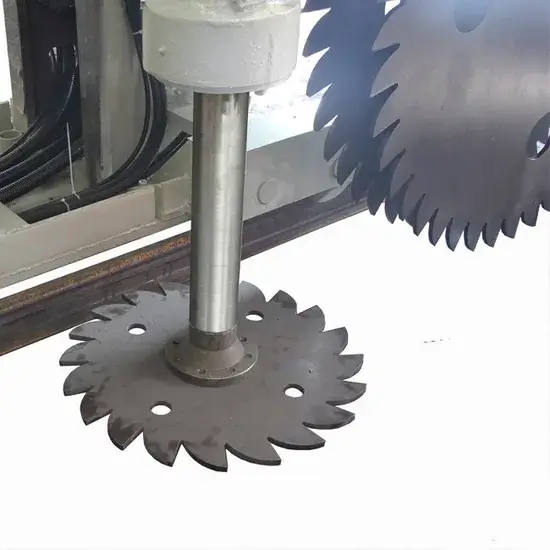

The true genius of this machine lies in its multi-axis blade configuration. As the machine travels forward on its rails, large vertical circular blades slice deep into the rock face to establish the sides of the block. Simultaneously, a robust horizontal blade positioned at the base undercuts the stone.
This means that in a single pass, the block is completely separated from the bedrock in three dimensions. There is no need for secondary equipment like wire saws or manual prying to free the base. The block is ready to be lifted the moment the machine rolls past.
All-in-one separation: The combination of vertical depth cutting and horizontal base undercutting instantly frees the block from the surrounding mountain.
Standardized “Brick-Style” Production
This machine transforms your quarry into an outdoor manufacturing facility. Because the distance between the blades is mechanically fixed, every block harvested acts as a perfectly standardized architectural unit.
This ‘brick-style’ mass production is incredibly lucrative for sandstone and tuff quarries supplying wall cladding, retaining wall blocks, or raw material for paving stones. You bypass the factory entirely, selling finished, perfectly squared construction materials directly from the quarry floor.
Factory precision in the pit: The fixed blade geometry guarantees that every extracted block is dimensionally identical, ready for immediate commercial sale.
Intuitive Hydraulic Lever Control
Adaptability on the quarry floor is critical. This machine is equipped with a centralized, heavy-duty hydraulic lever control bank. Through these intuitive joysticks, the operator can quickly and conveniently adjust the main spindle box—controlling elevation (up and down) and lateral movement (left and right)—as well as effortlessly fine-tune the spacing between the vertical blades. This mechanical agility allows you to seamlessly switch production to cut different block dimensions on the fly, matching shifting market demands without lengthy setup downtime.
Precision control: A robust hydraulic lever bank allows operators to easily adjust blade spacing and spindle positioning to produce varying architectural block dimensions.
Heavy-Duty Q460c Manganese Steel Blades
Cutting through abrasive sedimentary rock requires uncompromising metallurgy. The massive circular blade blanks are forged from premium Q460c manganese steel, renowned for its exceptional anti-deformation properties. Heat-treated to a strict hardness of 52HRC, these steel cores remain perfectly rigid under extreme radial loads. To execute the actual cut, the blades are fitted with ultra-durable tungsten carbide inserts. These specialized teeth deliver unparalleled resistance to wear, high heat, and corrosion, ensuring a massive operational lifespan even in the most highly abrasive sandstone deposits.
Unyielding strength: Q460c manganese steel cores heat-treated to 52HRC, paired with high-performance tungsten carbide inserts, guarantee maximum durability and straight cuts.
Core Features of MosCut Soft Stone Cutters
Engineered to withstand heavy abrasive dust and deliver relentless cutting force, these machines are built for 24/7 commercial extraction.High-Torque Specialized Motors
Soft stone can be incredibly dense and abrasive. Our machines are powered by customized high-torque main motors (up to 75kW for the vertical spindle) designed to prevent stalling when encountering dense bands of compacted sand or unexpected hardness variations.

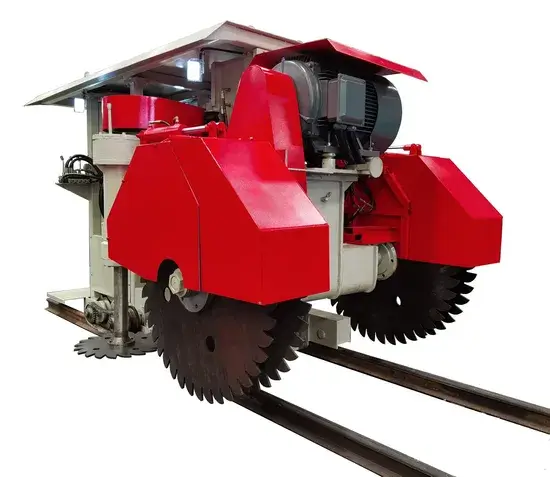

Reinforced Dual-Rail System
Precision requires absolute stability. The machine travels on a heavy-duty, ultra-wide dual-rail system. This reinforced track anchors the machine against the massive lateral forces generated by the horizontal cutting blade, ensuring the cut remains millimetrically straight.

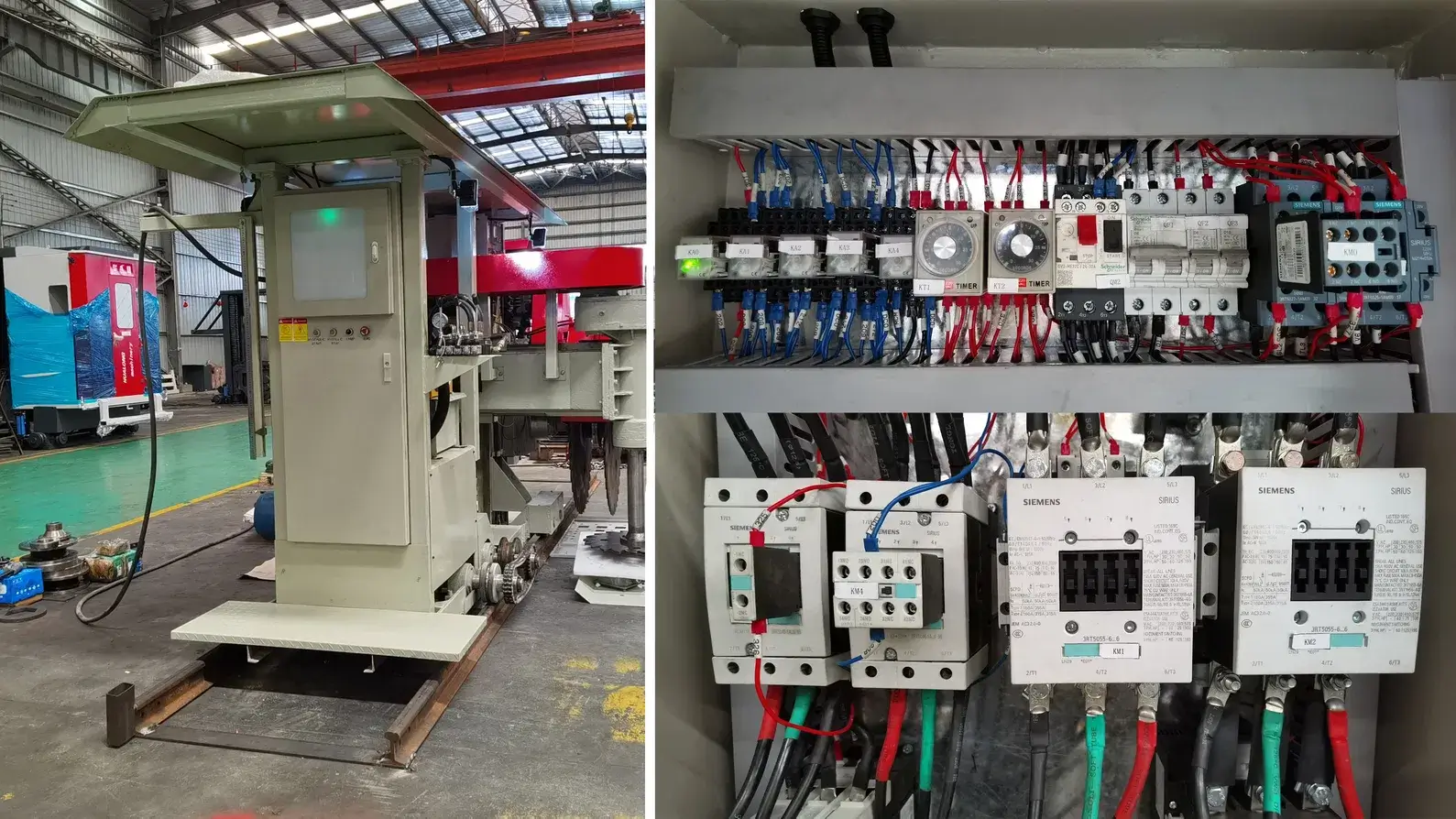

All-Weather Dust-Proof Cabinet
Sandstone cutting generates an extreme volume of fine, abrasive dust. Our electrical control cabinets feature an IP65 completely sealed design with integrated thermal management, preventing fine silica dust from short-circuiting the sensitive VFDs and PLCs.
Machine Models & Configuration Options
Choose the ideal platform size to match your targeted block dimensions and daily volumetric goals.Small Block Series
Designed for shallow bench extraction and the production of smaller, easily transportable building stones. This series features a compact footprint, lower power consumption, and is highly agile for smaller quarry terraces.
Standard Commercial Series
The Global Best-Seller. Striking the perfect balance between cutting depth (over half a meter) and energy efficiency. Engineered for high-volume limestone and sandstone quarries demanding consistent, mid-sized block yields day in and day out.
Heavy-Duty Extraction Series
The ultimate high-capacity machine. Built on a massively reinforced chassis and equipped to handle the largest diameter circular blades. Designed for extracting oversized, high-tonnage soft stone blocks for monumental architectural projects.
Technical Specifications & Engineering Data
Review the precise mechanical capabilities of our standard commercial soft-stone cutting machine.| Item Specification | Unit | Value |
|---|---|---|
| Vertical Power of Motor | Kw | 75 |
| Horizontal Power of Motor | Kw | 45 |
| Rail Power of Motor | Kw | 5.5 |
| Moving speed (forward & backward) | m/min | 10 – 45 |
| Max distance of cylinder lifting | mm | 700 |
| Max cutting depth | mm | 520 |
| Diameter of vertical Blade | mm | 1350 |
| Diameter of horizontal Blade | mm | 600 |
| Blade Thickness | mm | 10 |
| Quantity of Blades | pcs | 6 |
| Total Power | kw | 130 |
| Estimated Output | sqm/day | 120 |
| Length of Rail | Meter | 100 |
| Overall Dimension (L*W*H) | mm | 3600 * 2350 * 2600 |
| Machine weight | kg | 7000 |
Applications: The Sedimentary Rock Specialist
This specialized dual-axis cutting technology is the definitive extraction method for the world’s most valuable soft stones.Sandstone Red Stone Extraction
Whether harvesting yellow, red, or beige architectural sandstone, the machine delivers immaculate edges. Its steady advance prevents the fragile layers of the sedimentary stone from separating or cracking during extraction.

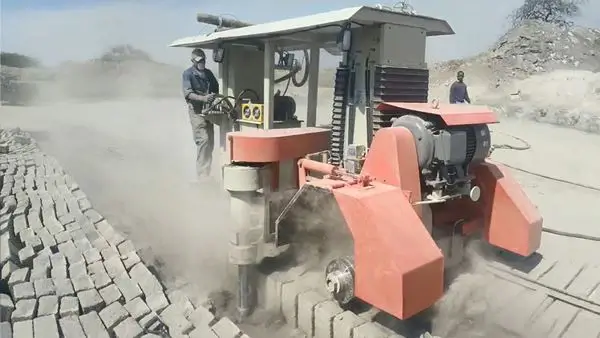

Limestone Extraction
Limestone deposits are often massive and uniform. The machine takes full advantage of this, utilizing its 100-meter rail system to execute incredibly long, uninterrupted high-speed runs, harvesting massive volumes of stone per shift.

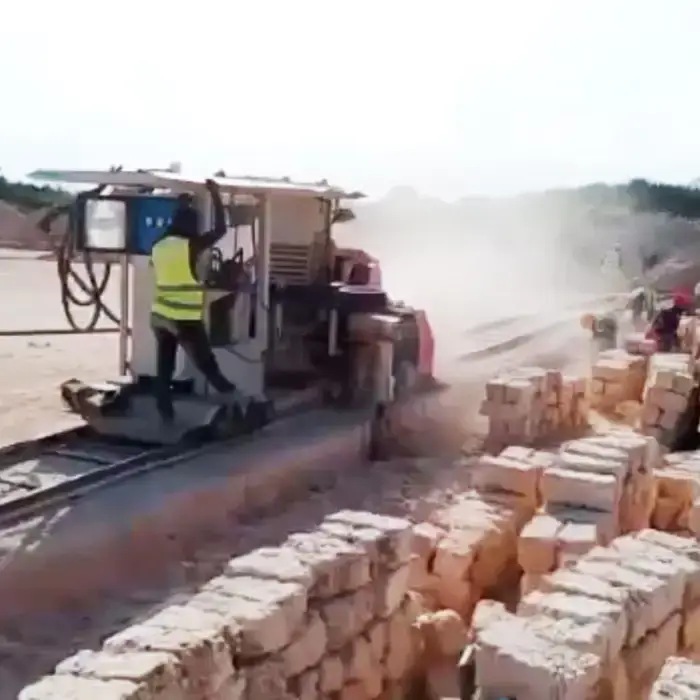

Porous Laterite & Tuff Stone Extraction
For highly porous and softer materials like Laterite and volcanic Tuff, the machine’s variable speed control allows the operator to maximize the forward travel speed, resulting in astonishingly high daily production rates.
Estimated Production Efficiency
Anticipate your daily yield based on rock density. Our machines are built to maximize your volumetric output.| Stone Material Type | Average Hardness (Mohs) | Estimated Output (sqm / 8-Hour Shift) | Extraction Characteristics |
|---|---|---|---|
| Sandstone | 3.0 – 4.5 | 100 – 120 sqm | Highly abrasive; requires steady feed rate |
| Limestone | 2.5 – 3.5 | 120 – 150 sqm | Smooth cutting; allows for rapid machine travel |
| Laterite / Tuff | 1.5 – 2.5 | 150 – 180+ sqm | Extremely soft; maximum advance speed possible |
Maintenance & Spares: Keeping the Spindle Turning
Soft stone produces a massive volume of heavy slurry. Proper maintenance ensures decades of reliable performance.The primary challenge in sedimentary rock extraction is the rapid accumulation of abrasive stone slurry. The MosCut machine is designed with built-in defenses. The guide rails feature automated sweeping mechanisms to clear debris from the rack and pinion gears, preventing travel stutter.
For the cutting tools, it is vital to use specialized diamond blades designed specifically for soft stone. These blades feature wide ‘U-slot’ gullets between the diamond segments. This specialized geometry acts like a water pump, rapidly flushing the thick sandstone slurry out of the cut. Using generic blades will cause the slurry to pack tightly around the blade core, overheating the steel and leading to catastrophic blade warping.
Engineered for slurry: Using specialized diamond blades with wide flushing gullets prevents thick sandstone mud from jamming the blades and overheating the motors.
Watch It Work: Live From the Quarry
Witness the incredible efficiency of simultaneous vertical and horizontal cutting in a live quarry environment.Revolutionize Your Soft Stone Yield
Stop wasting valuable stone with manual splitting. Upgrade to MosCut’s all-in-one extraction technology and harvest perfect blocks today.
Explore Full Quarry SolutionsRelated Quarry Equipment Insights
Deepen your technical knowledge with our latest operational guides on sedimentary rock extraction and blade maintenance.
Maximizing Blade Life in Sandstone
Why sandstone destroys standard blades, and how to select the right diamond matrix to combat extreme quartz abrasion.
Read More
The True ROI of Mechanization
A detailed financial breakdown comparing the cost of manual wedge splitting versus all-in-one mechanized extraction.
Read More

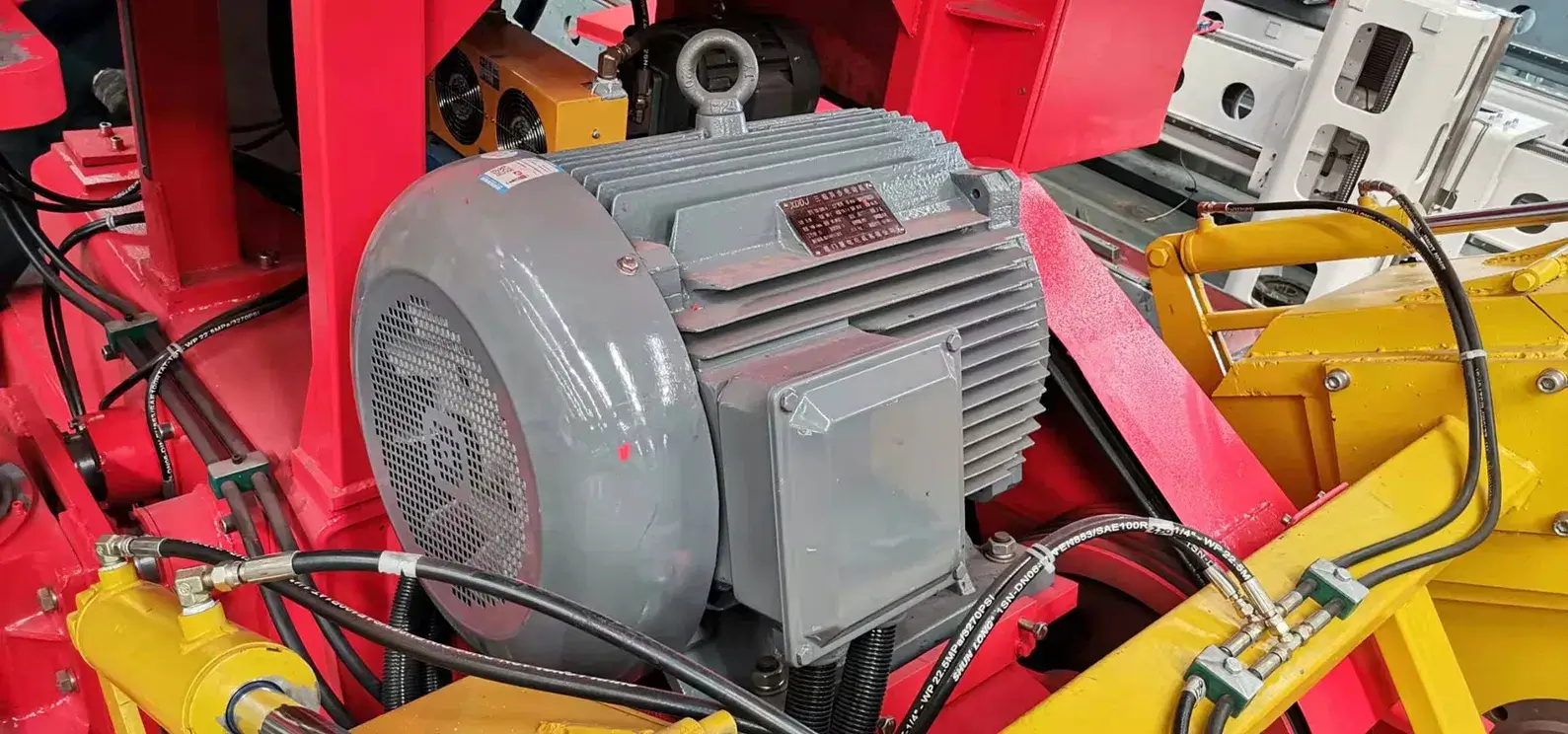

Preventing Motor Overload
Essential VFD and electrical maintenance tips to keep your 75kW main spindle motors running cool in extreme heat.
Read More
Mastering Slurry Management
How to optimize your water flow rates to prevent thick limestone mud from jamming your horizontal base blades.
Read MoreGlobal Customer Success Stories
See how top-tier sandstone and limestone operations around the world are multiplying their daily output with MosCut.
India: Rajasthan Red Sandstone
A massive commercial operation eliminated manual labor constraints, boosting perfectly squared block yield from 60% to 95%.
Vietnam: Limestone Velocity
Leveraging our 100-meter rail system, this quarry consistently achieves over 140 square meters of extraction per shift.
Kenya: Laterite Mass Production
Bypassed the processing factory entirely by using the machine to cut standardized architectural wall bricks directly in the pit.
Indonesia: Volcanic Tuff Extraction
Utilized variable speed drives to carefully harvest highly porous volcanic tuff without fracturing the delicate stone structure.
Frequently Asked Questions
Technical answers regarding the capabilities, limits, and maintenance of soft stone cutting machines.1. Can this machine be used to cut hard granite?
Absolutely not. This machine is engineered specifically for softer sedimentary and metamorphic rocks. Attempting to cut dense igneous rock like granite with this horizontal blade configuration will instantly burn out the motors and destroy the blades.
2. How frequently do the horizontal base blades need to be replaced?
The horizontal blade endures significant friction as it supports the weight of the slurry. Typically, its diamond segments will wear out slightly faster than the vertical blades. Regular inspection of segment height is required every week.
3. Can the 100-meter rail system be extended?
Yes. The heavy-duty rails are modular. You can bolt on additional rail sections to extend the track to perfectly match the entire length of your quarry bench, ensuring uninterrupted continuous cutting.
4. How does the machine handle the massive amount of heavy slurry generated?
The machine requires a high-volume water pump to flood the cut slots continuously. This water pressure, combined with the specialized ‘U-slot’ geometry of the diamond blades, actively pumps the thick slurry out of the kerf.
5. What happens if the horizontal blade hits a hard quartz inclusion?
MosCut machines feature intelligent VFD (Variable Frequency Drive) controllers. If a sudden hardness spike causes the amp draw to exceed safe limits, the machine automatically slows its forward advance to prevent blade jamming or motor burnout.
6. Is secondary squaring required after extraction?
No. The primary advantage of the vertical + horizontal cutting system is that it produces blocks with perfect 90-degree corners. The blocks are geometrically flawless and ready for direct sale or immediate loading into a factory gang saw.
7. How many operators are required to run this machine?
Once the rails are laid and the machine is mounted, a single trained operator can easily manage the cutting process via the control panel, drastically reducing your daily labor overhead.
8. Can the cutting depth or width be adjusted?
The vertical cutting depth can be precisely controlled via the lifting cylinder. The cutting width (distance between the vertical blades) can be adjusted by changing the physical steel spacers mounted on the main spindle.
9. What is the biggest risk when extracting sandstone?
Sandstone dust contains high levels of silica, which is incredibly abrasive. The biggest risk is this dust penetrating the gearboxes or the electrical cabinet. Daily cleaning and ensuring IP65 seals are intact is mandatory.
10. Does the machine need to be leveled perfectly before cutting?
Yes. The steel rail foundation must be perfectly leveled on the quarry floor. If the rails are uneven, the massive weight of the machine will cause the blades to bind and warp inside the stone cut.
