5-Axis CNC Bridge Saw For Marble Granite & Smart Stone Fabrication, Miter Cuts & 3D Profiling

Upgrade to the ultimate 5 axis CNC bridge saw saw machine Featuring an overhead camera, vacuum lifter, automated miter cuts, and complex 3D stone profiling capabilities. Elevate your stone factory to the pinnacle of automated fabrication. The modern luxury stone market demands zero-margin-of-error waterfall edges, perfect bookmatched veining, and highly complex 3D architectural profiles. Our flagship 5-Axis CNC Bridge Saw combines true 5-axis simultaneous interpolation to transform raw slabs into high-value masterpieces while drastically reducing labor and material waste..

5 Axis CNC Bridge Saws

The Bottlenecks of Traditional Stone Fabrication

Relying on standard 3-axis or manual bridge saws severely limits a factory’s ability to compete in the high-end custom market. Fabricators constantly battle these four critical profit-draining challenges:

Material Waste on Luxury Stone

Traditional machines cannot preview cuts. When working with expensive veined marble or sintered stone, operators frequently miscalculate, ruining the natural pattern and causing massive material waste.

Laborious Material Handling

After a cut is made, workers must manually enter the danger zone to drag heavy pieces out of the blade’s path. This is dangerously slow and frequently causes the stone edges to chip.

Inaccurate 45° Joints

Manual tilting heads vibrate, leading to jagged 45-degree miter cuts. Achieving a perfectly seamless “waterfall edge” for a luxury kitchen island becomes an impossible task without heavy manual grinding.

The 3D Profiling Barrier

When clients request solid stone sinks, curved wave panels, or complex Roman columns, traditional factories are forced to reject the highly profitable orders or outsource them due to a lack of 3D capability.

Core Capabilities of the Smart 5-Axis System

This machine is not just a saw; it is an intelligent, fully automated CNC processing center designed to eliminate human error and maximize your workshop’s yield.

Intelligent Camera Nesting

An overhead HD camera captures the slab’s exact dimensions and veining. Operators simply drag and drop digital CAD parts over the image to avoid fissures and guarantee perfect pattern matching before the blade even spins.

Integrated Vacuum Lifter

Equipped directly behind the spindle, the automated vacuum manipulator lifts and moves cut pieces out of the way seamlessly. This enables continuous, unattended cutting of the entire slab with zero manual intervention.

Automated Miter & Sink Routing

The 5-axis head rotates and tilts effortlessly to execute flawless 45-degree miter cuts. It also accommodates high-speed milling bits to automatically plunge and route out perfectly sized sink and stove holes.

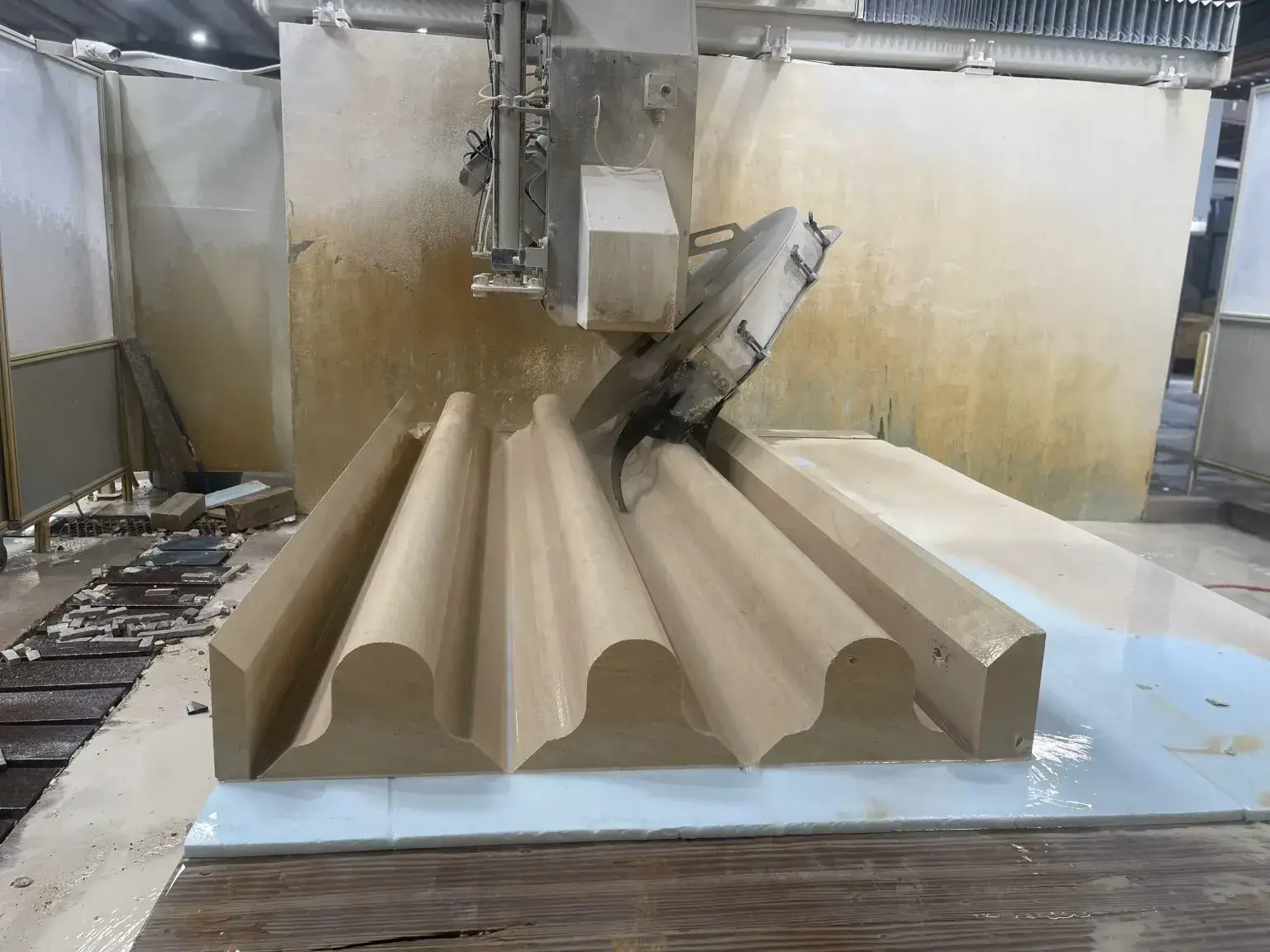

True 5-Axis 3D Profiling

With simultaneous X, Y, Z, A, and C axis interpolation, the machine carves solid blocks of stone into complex three-dimensional art, from intricate architectural cornices to bespoke curved sculptures.

Technical Specifications

Compare our heavy-duty 5-Axis models. Whether you need the standard HTQ500GL for precision countertops or the HTQ700GL for massive architectural block cutting, we deliver uncompromising industrial performance.

ParameterUnitHTQ500GLHTQ700GL
Blade Diametermm350 – 500350 – 700
Mode of Control/CNCCNC
Programming Method/CAD importCAD import
Main Motor Powerkw18.522
Spindle Speedrpm0 – 60000 – 6000
Stroke of X Axismm38003800
Stroke of Y Axismm24002400
Stroke of Z Axismm350500
Stroke of Axis C (Rotation)n°0 – 360°0 – 360°
Stroke of Axis A (Tilt)n°0 – 90°0 – 90°
Maximum Tilt Angle of Workbenchn°0 – 85°0 – 85°
Size of Work Tablemm3600 × 22003600 × 2200
Total Powerkw29.533
Gross Weightkg48005000
Overall Dimensionsmm5800 × 3400 × 34005800 × 3400 × 3600

Anatomy of the 5-Axis Bridge Saw

To achieve absolute precision on complex 3D profiles and automated stone nesting, every component must be engineered to the highest industrial standard. Explore the premium hardware, intelligent vision systems, and robust mechanics that make this machine the ultimate fabrication powerhouse.

Italian ESA CNC Software for stone machine

Italian CNC Controller & Software

Powered by world-renowned Italian systems like Pegasus or ESA, the software is exceptionally intelligent yet incredibly easy to learn. Designed specifically for stone mechanics, it translates complicated digital designs and 5-axis interpolations into perfectly smooth physical cuts with minimal operator training.

High-Resolution Overhead Camera for Stone Nesting

High-Resolution Overhead Camera

Equipped with a top-mounted HD camera that captures high-resolution images of the entire slab. This allows the system to precisely identify natural fissures, cracks, and veining, enabling the operator to digitally nest cutting templates to avoid defects and achieve perfect bookmatching.

High-Capacity Vacuum Sucker

High-Capacity Vacuum Sucker

The heavy-duty vacuum suction system is integrated directly behind the spindle. With exceptional load-bearing capacity and intelligent safety sensors, it automatically lifts and moves cut pieces on the worktable, clearing the path for the next cut without requiring any dangerous manual lifting.

Heavy-Duty 5-Axis Spindle Head

Heavy-Duty 5-Axis Spindle Head

The high-torque main spindle is built to conquer the hardest materials. It seamlessly accommodates large diamond saw blades for deep slab slicing, while also featuring a half-inch gas fitting to equip high-speed milling bits for detailed 3D carving, edge routing, and sink hole drilling.

Large size worktable for jumbo slabs

Massive Jumbo-Size Worktable

Modern architectural projects demand large-format materials. Equipped with an oversized hydraulic tilting worktable (3600×2200mm), this machine easily accommodates massive “Jumbo” quartz slabs, oversized sintered stone, and heavy natural marble blocks, meeting almost all processing dimension requirements.

Wireless remote control pendant

Wireless Remote Control Pendant

Experience total operational freedom. Armed with the wireless control handwheel, operators can walk safely around the massive worktable to closely inspect complex alignments and control machine movements instantly. It is highly efficient and keeps the operator out of harm’s way.

CAD file import for stone cutting

Seamless CAD Import Integration

Design in the office and execute on the factory floor. The system fully supports standard DXF/CAD file imports. Simply edit your cutting layouts or custom sink templates on a PC, upload them to the machine’s software, and watch the automated execution with maximum efficiency.

Top brand linear guide rails

Premium Linear Guide Rails

Both the massive main crossbeam and the side beams run on international top-brand linear guide rails. Bathed in a continuous oil lubrication system, these guides completely eliminate vibration, ensuring that the heavy cutting head glides with absolute, buttery-smooth stability.

Rational layout electrical cabinet

Rational Layout Electrical Cabinet

A masterpiece of industrial wiring. The electrical cabinet features a highly rational layout designed for excellent heat dissipation. All primary components, such as PLCs and contactors, are sourced strictly from international top brands, ensuring ultimate electronic reliability and safety.

High precision absolute servo motors

High-Precision Servo Motors

The walking and positioning mechanisms are entirely driven by top-tier absolute servo motors. This guarantees incredibly rapid machine movement, zero mechanical backlash, and microscopic accuracy when performing delicate 45-degree miters and multi-axis 3D interpolations.

Optional stainless steel safety doors

Optional Safety Enclosure Doors

For ultimate workshop safety, clients can opt for heavy-duty stainless steel safety doors installed between the side beams. Featuring transparent viewing windows, they isolate the operator from high-speed moving parts, drastically reduce factory noise, and prevent water slurry from splashing outside.

Anti-slip grid standing platform

Anti-Slip Grid Standing Platform

A highly humane design detail. Installed on both the left and right sides of the machine, these hard grid platforms provide a safe, elevated area for operators to inspect the cutting progress. The grid design ensures cooling water drains instantly, keeping the platform slip-free and the operator’s boots dry.

Comprehensive operation interface

Comprehensive Operation Interface

The primary control station is an ergonomic marvel. It features a large, highly responsive color touch screen, a full industrial keyboard and mouse for quick CAD editing, dedicated manual override buttons, and highly visible Emergency Stop switches to guarantee maximum operational control.

Automated slab thickness measuring probe

Automated Slab Thickness Probe

Consistent cutting depth is critical for multi-axis fabrication. Before the cutting begins, the machine utilizes an automated probe to physically measure the exact thickness of the loaded slab. This precise data is instantly fed to the CNC system, preventing the blade from cutting dangerously deep into the worktable or leaving the bottom of the stone uncut.

Precision CNC tool setting instrument

Precision Tool Setting Instrument

Diamond blades and router bits wear down over time, which can ruin precise plunge cuts and miter joints. To combat this, the spindle lowers the tool onto a specialized presetter sensor. The system automatically measures the exact tool length and compensates for any wear in real-time, ensuring absolute depth-of-cut accuracy without manual calibration.

Available Cutting Shapes & Capabilities

Thanks to the advanced 5-axis CNC interpolation and the combination of saw blades and router bits, this machine can execute virtually any geometric shape. Below is a comprehensive list of the 22 precise shapes and profiles you can produce at the touch of a button.

Shape PreviewCutting Shape (CNC Function)Common Fabrication Applications
Dimension Slab Cutting

Dimension Slab Cutting

Standard cut-to-size flooring tiles, exterior wall cladding panels, and paving stones.
Surface Slotting

Surface Slotting

Drainboard grooves on kitchen countertops, decorative linear reveals on stone facades.
0/90 Angle Chamfer

0/90 Angle Chamfer

Perfectly mitered waterfall kitchen islands, 45-degree seamless drop aprons, staircase treads.
Square hole

Square hole

Standard drop-in stovetop cutouts, electrical box openings in stone panels.
Square Hole Cutting

Square Hole Cutting

Interior architectural wall outlets, HVAC vent covers made of solid stone.
Sink Cutting

Sink Cutting

Precise undermount sink cutouts for marble vanity tops and quartz kitchen counters.
Straight Line Profiling

Straight Line Profiling

Classic architectural baseboards, straight wall cornices, and decorative edge moldings.
Four-sides Chamfer

Four-sides Chamfer

Custom coffee table tops, premium beveled paving stones, and luxury wall caps.
Arbitrary Polygon

Arbitrary Polygon

Bespoke architectural geometric pieces, custom-designed reception desk panels.
Trapezoid

Trapezoid

Specialized landscape paving, angled corner countertops, and unique hearth stones.
Rhombus

Rhombus

High-end luxury floor mosaics, 3D visual effect wall cladding patterns.
Fanshaped

Fanshaped

Spiral staircase stone landings, radial driveway paving, curved patio corners.
Circle

Circle

Round dining tables, solid stone column bases, and circular floor medallions.
Oval

Oval

Oval marble vanity tops, luxury conference tables, and elliptical decorative plaques.
Horse Belly Edge

Horse Belly Edge

Classic and ergonomic kitchen island edges, premium bar tops.
Circular Hole

Circular Hole

Round drop-in sink basins, large plumbing fixture cutouts, cable grommet holes.
Elliptical Hole

Elliptical Hole

Custom elliptical basin drop-ins, specialized architectural pass-throughs.
Drill Hole

Drill Hole

Faucet installation holes, soap dispenser holes, and structural anchor points.
Circular Ring

Circular Ring

Decorative stone borders, rings around structural columns, fire pit caps.
Curved Line Profiling

Curved Line Profiling

Modern wave panels, undulating 3D background walls, and arched doorways.
Arch Line Profiling

Arch Line Profiling

Historical restoration window surrounds, stone bridge arches, curved lintels.
Surface Engraving

Surface Engraving

Detailed tombstones, bespoke bas-relief murals, and custom stone signage.

Premium Applications & Profit Centers

Unlock the most lucrative sectors of the stone industry. The 5-axis capability allows you to transition from basic slab cutting to producing high-margin, bespoke architectural elements.

1. Kitchen & Bath Countertops

Achieve true all-in-one automated fabrication. The machine flawlessly executes sink and stovetop hole cutting, edge chamfering, and surface grooving in a single setup. It easily handles natural marble, quartz, and ultra-hard modern materials like sintered stone and porcelain with absolute precision.

Architectural Facades and Decor

Architectural Facades & Decor

Meet the modern architectural demand for aesthetics and extreme complexity. Fabricate high-value, bespoke items such as curved stone background walls, classical Roman columns, and intricate bas-reliefs, capturing the most profitable segments of the commercial luxury construction market.

3. Stairs & Floor Paving

Deliver premium safety and design. Process custom stair treads by milling precise anti-slip bevels (steplessly adjustable from 0° to 15°). The machine enables multi-face continuous processing, allowing you to cut the stair tread, profile the edge, and route connection holes in one automated run.

Why Partner with MOSCUT for 5-Axis Technology

Investing in a fully automated 5-axis CNC center is a major strategic decision. For high-end machinery of this caliber, the technical training and after-sales service are just as critical as the hardware itself. We don’t just sell equipment; we partner with your factory to ensure you successfully master 3D profiling and automated fabrication from day one.

20 Years of Stone Machinery Manufacturing Experience

20+ Years of Bridge Saws Experience

Building a true 5-axis machine requires mastering structural rigidity. With over two decades of experience manufacturing heavy-duty gantry systems, we engineer our bridge saws to withstand the immense torsional forces generated during high-speed multi-axis interpolation, ensuring decades of zero-vibration precision.

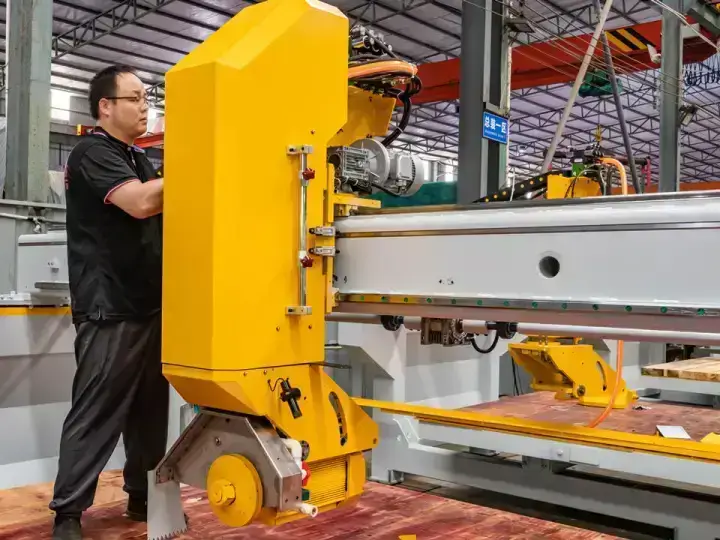

Global On-Site Installation and Calibration

Global On-Site Installation

Deploying a massive 5-axis center requires exact mechanical calibration. We send our senior engineers directly to your global facility. They handle the complete mechanical assembly, level the massive steel frame, and precisely calibrate the absolute servo motors to guarantee micron-level accuracy before production begins.

Specialized 5-Axis CNC Software Training

Specialized 5-Axis Software Training

Advanced hardware is useless without software mastery. Our installation package includes comprehensive, hands-on training for the Italian CNC system. We teach your operators how to import CAD/DXF files, utilize the overhead camera for nesting, and confidently program complex 3D profiles and miter cuts.

24/7 Global Technical Support for CNC Machines

24/7 Global Technical Support

Production downtime is incredibly costly. When you partner with us, you gain access to our responsive, English-speaking engineering support team. Whether you need help troubleshooting a software alarm, optimizing a cutting feed rate, or sourcing a spare part, we provide instant remote diagnostics and support via video call or WhatsApp.

Watch the 5-Axis Bridge Saw in Action

Witness the ultimate fabrication efficiency. See how the smart camera aligns the veining, the vacuum lifter automates material handling, and the 5-axis head performs flawless 45-degree miter cuts in real-time.

Customer Success Stories

See how top fabrication shops around the world have transformed their production speed, accuracy, and profitability by upgrading to our 5-axis CNC technology.

Luxury Countertops in California

“The camera nesting system is a game-changer. We process highly veined Calacatta marble, and being able to match the veins on screen before cutting has eliminated our rework. The vacuum lifter also means one operator can run the entire machine safely.”

– David L., Custom Kitchen Fabricator

Architectural Details in Dubai

“We handle massive commercial facade projects. The 5-axis 3D capability allows us to carve complex wave panels and Roman columns directly from CAD imports. The ESA system is incredibly intuitive, and the machine’s rigidity is unmatched.”

– Tariq M., Commercial Stone Contractor

Sintered Stone Processing in Italy

“Cutting sintered stone requires absolute precision to prevent cracking. The thickness detection tool and perfect servo motor control give us flawless 45-degree miter cuts every time. The enclosed safety doors keep our workshop surprisingly quiet and clean.”

– Marco V., Premium Surfaces Co.

Monument Fabrication in Germany

“We process incredibly thick granite blocks for monuments. The HTQ700GL handles the heavy load effortlessly. The wireless pendant allows our operator to safely inspect deep cuts from the anti-slip grid platform without stopping production.”

– Hans S., Memorial Stone Crafters

Expert Insights on 5-Axis Fabrication

Master the capabilities of your 5-axis machine. Explore our expert articles on optimizing CAD/CAM software, utilizing camera layout for maximum yield, and executing advanced 3D profiles.

Top 10 Technical FAQ for 5-Axis Machines

Investing in a 5-axis CNC center is a major decision. Find answers to the most common technical questions regarding software compatibility, machine capabilities, and installation requirements below.

Software & Smart Capabilities

1. Is the ESA software difficult to learn?

Not at all. While the 5-axis capabilities are advanced, the ESA interface is designed specifically for stone workers. Basic cuts take hours to learn. For 3D profiling, we provide comprehensive training so your operators can confidently import and execute CAD models.

2. What file formats does the machine accept?

The system is highly compatible and seamlessly imports standard DXF and DWG files generated from any major CAD software (like AutoCAD), directly translating them into precise cutting paths.

3. How does the camera layout system handle slab defects?

The high-resolution overhead camera takes a perfect top-down photo of the slab. On the touch screen, the operator can clearly see any natural cracks or fissures and manually drag the digital cut pieces (like countertop sections) around them to avoid the defects.

4. What is the maximum lifting capacity of the vacuum manipulator?

The heavy-duty vacuum lifter is designed for industrial slabs. It typically safely lifts cut pieces weighing up to 500kg (depending on the configuration), moving them gently without damaging the polished surface or the edges.

5. How does the tool thickness detector work?

Before executing a sink cutout or milling operation, the spindle lowers the router bit onto a specialized sensor. The CNC system instantly measures the tool’s exact length and compensates for any wear, ensuring your plunge cuts are perfectly accurate.

Mechanical Setup & Operations

6. Do I need to build a special concrete foundation for this machine?

Yes. Due to the extreme weight and the high-speed movement of the heavy gantry, a proper reinforced concrete foundation with solid side walls is required to ensure absolute vibration-free performance and long-term accuracy.

7. Can it cut ultra-compact sintered stone like Dekton?

Absolutely. The rigidity of the machine, combined with the variable speed control of the servo motors, allows it to execute the slow, controlled plunge cuts required for tension-heavy materials like sintered stone without causing fractures.

8. How do the safety enclosure doors protect the workshop?

The optional stainless steel doors seal off the cutting area. This prevents highly abrasive stone slurry and water from splashing onto the factory floor, significantly reduces operational noise, and physically protects personnel from the high-speed moving gantry.

9. What is the benefit of the anti-slip grid platform?

The elevated grid platform allows the operator to stand at an optimal height to monitor the cutting process. Since it is an open grid, water drains through instantly, preventing slippery puddles and keeping the operator’s boots dry and safe.

10. What kind of power and air supply is required?

The machine requires a stable industrial 3-Phase electrical supply (customized to your local voltage, e.g., 380V/220V) and a consistent compressed air supply to operate the pneumatic components and the vacuum lifter safely.

Ask For Quote

The Bottlenecks of Traditional Stone Fabrication

Relying on standard 3-axis or manual bridge saws severely limits a factory’s ability to compete in the high-end custom market. Fabricators constantly battle these four critical profit-draining challenges:

Material Waste on Luxury Stone

Traditional machines cannot preview cuts. When working with expensive veined marble or sintered stone, operators frequently miscalculate, ruining the natural pattern and causing massive material waste.

Laborious Material Handling

After a cut is made, workers must manually enter the danger zone to drag heavy pieces out of the blade’s path. This is dangerously slow and frequently causes the stone edges to chip.

Inaccurate 45° Joints

Manual tilting heads vibrate, leading to jagged 45-degree miter cuts. Achieving a perfectly seamless “waterfall edge” for a luxury kitchen island becomes an impossible task without heavy manual grinding.

The 3D Profiling Barrier

When clients request solid stone sinks, curved wave panels, or complex Roman columns, traditional factories are forced to reject the highly profitable orders or outsource them due to a lack of 3D capability.

Core Capabilities of the Smart 5-Axis System

This machine is not just a saw; it is an intelligent, fully automated CNC processing center designed to eliminate human error and maximize your workshop’s yield.

Intelligent Camera Nesting

An overhead HD camera captures the slab’s exact dimensions and veining. Operators simply drag and drop digital CAD parts over the image to avoid fissures and guarantee perfect pattern matching before the blade even spins.

Integrated Vacuum Lifter

Equipped directly behind the spindle, the automated vacuum manipulator lifts and moves cut pieces out of the way seamlessly. This enables continuous, unattended cutting of the entire slab with zero manual intervention.

Automated Miter & Sink Routing

The 5-axis head rotates and tilts effortlessly to execute flawless 45-degree miter cuts. It also accommodates high-speed milling bits to automatically plunge and route out perfectly sized sink and stove holes.

True 5-Axis 3D Profiling

With simultaneous X, Y, Z, A, and C axis interpolation, the machine carves solid blocks of stone into complex three-dimensional art, from intricate architectural cornices to bespoke curved sculptures.

Technical Specifications

Compare our heavy-duty 5-Axis models. Whether you need the standard HTQ500GL for precision countertops or the HTQ700GL for massive architectural block cutting, we deliver uncompromising industrial performance.

ParameterUnitHTQ500GLHTQ700GL
Blade Diametermm350 – 500350 – 700
Mode of Control/CNCCNC
Programming Method/CAD importCAD import
Main Motor Powerkw18.522
Spindle Speedrpm0 – 60000 – 6000
Stroke of X Axismm38003800
Stroke of Y Axismm24002400
Stroke of Z Axismm350500
Stroke of Axis C (Rotation)n°0 – 360°0 – 360°
Stroke of Axis A (Tilt)n°0 – 90°0 – 90°
Maximum Tilt Angle of Workbenchn°0 – 85°0 – 85°
Size of Work Tablemm3600 × 22003600 × 2200
Total Powerkw29.533
Gross Weightkg48005000
Overall Dimensionsmm5800 × 3400 × 34005800 × 3400 × 3600

Anatomy of the 5-Axis Bridge Saw

To achieve absolute precision on complex 3D profiles and automated stone nesting, every component must be engineered to the highest industrial standard. Explore the premium hardware, intelligent vision systems, and robust mechanics that make this machine the ultimate fabrication powerhouse.

Italian ESA CNC Software for stone machine

Italian CNC Controller & Software

Powered by world-renowned Italian systems like Pegasus or ESA, the software is exceptionally intelligent yet incredibly easy to learn. Designed specifically for stone mechanics, it translates complicated digital designs and 5-axis interpolations into perfectly smooth physical cuts with minimal operator training.

High-Resolution Overhead Camera for Stone Nesting

High-Resolution Overhead Camera

Equipped with a top-mounted HD camera that captures high-resolution images of the entire slab. This allows the system to precisely identify natural fissures, cracks, and veining, enabling the operator to digitally nest cutting templates to avoid defects and achieve perfect bookmatching.

High-Capacity Vacuum Sucker

High-Capacity Vacuum Sucker

The heavy-duty vacuum suction system is integrated directly behind the spindle. With exceptional load-bearing capacity and intelligent safety sensors, it automatically lifts and moves cut pieces on the worktable, clearing the path for the next cut without requiring any dangerous manual lifting.

Heavy-Duty 5-Axis Spindle Head

Heavy-Duty 5-Axis Spindle Head

The high-torque main spindle is built to conquer the hardest materials. It seamlessly accommodates large diamond saw blades for deep slab slicing, while also featuring a half-inch gas fitting to equip high-speed milling bits for detailed 3D carving, edge routing, and sink hole drilling.

Large size worktable for jumbo slabs

Massive Jumbo-Size Worktable

Modern architectural projects demand large-format materials. Equipped with an oversized hydraulic tilting worktable (3600×2200mm), this machine easily accommodates massive “Jumbo” quartz slabs, oversized sintered stone, and heavy natural marble blocks, meeting almost all processing dimension requirements.

Wireless remote control pendant

Wireless Remote Control Pendant

Experience total operational freedom. Armed with the wireless control handwheel, operators can walk safely around the massive worktable to closely inspect complex alignments and control machine movements instantly. It is highly efficient and keeps the operator out of harm’s way.

CAD file import for stone cutting

Seamless CAD Import Integration

Design in the office and execute on the factory floor. The system fully supports standard DXF/CAD file imports. Simply edit your cutting layouts or custom sink templates on a PC, upload them to the machine’s software, and watch the automated execution with maximum efficiency.

Top brand linear guide rails

Premium Linear Guide Rails

Both the massive main crossbeam and the side beams run on international top-brand linear guide rails. Bathed in a continuous oil lubrication system, these guides completely eliminate vibration, ensuring that the heavy cutting head glides with absolute, buttery-smooth stability.

Rational layout electrical cabinet

Rational Layout Electrical Cabinet

A masterpiece of industrial wiring. The electrical cabinet features a highly rational layout designed for excellent heat dissipation. All primary components, such as PLCs and contactors, are sourced strictly from international top brands, ensuring ultimate electronic reliability and safety.

High precision absolute servo motors

High-Precision Servo Motors

The walking and positioning mechanisms are entirely driven by top-tier absolute servo motors. This guarantees incredibly rapid machine movement, zero mechanical backlash, and microscopic accuracy when performing delicate 45-degree miters and multi-axis 3D interpolations.

Optional stainless steel safety doors

Optional Safety Enclosure Doors

For ultimate workshop safety, clients can opt for heavy-duty stainless steel safety doors installed between the side beams. Featuring transparent viewing windows, they isolate the operator from high-speed moving parts, drastically reduce factory noise, and prevent water slurry from splashing outside.

Anti-slip grid standing platform

Anti-Slip Grid Standing Platform

A highly humane design detail. Installed on both the left and right sides of the machine, these hard grid platforms provide a safe, elevated area for operators to inspect the cutting progress. The grid design ensures cooling water drains instantly, keeping the platform slip-free and the operator’s boots dry.

Comprehensive operation interface

Comprehensive Operation Interface

The primary control station is an ergonomic marvel. It features a large, highly responsive color touch screen, a full industrial keyboard and mouse for quick CAD editing, dedicated manual override buttons, and highly visible Emergency Stop switches to guarantee maximum operational control.

Automated slab thickness measuring probe

Automated Slab Thickness Probe

Consistent cutting depth is critical for multi-axis fabrication. Before the cutting begins, the machine utilizes an automated probe to physically measure the exact thickness of the loaded slab. This precise data is instantly fed to the CNC system, preventing the blade from cutting dangerously deep into the worktable or leaving the bottom of the stone uncut.

Precision CNC tool setting instrument

Precision Tool Setting Instrument

Diamond blades and router bits wear down over time, which can ruin precise plunge cuts and miter joints. To combat this, the spindle lowers the tool onto a specialized presetter sensor. The system automatically measures the exact tool length and compensates for any wear in real-time, ensuring absolute depth-of-cut accuracy without manual calibration.

Available Cutting Shapes & Capabilities

Thanks to the advanced 5-axis CNC interpolation and the combination of saw blades and router bits, this machine can execute virtually any geometric shape. Below is a comprehensive list of the 22 precise shapes and profiles you can produce at the touch of a button.

Shape PreviewCutting Shape (CNC Function)Common Fabrication Applications
Dimension Slab Cutting

Dimension Slab Cutting

Standard cut-to-size flooring tiles, exterior wall cladding panels, and paving stones.
Surface Slotting

Surface Slotting

Drainboard grooves on kitchen countertops, decorative linear reveals on stone facades.
0/90 Angle Chamfer

0/90 Angle Chamfer

Perfectly mitered waterfall kitchen islands, 45-degree seamless drop aprons, staircase treads.
Square hole

Square hole

Standard drop-in stovetop cutouts, electrical box openings in stone panels.
Square Hole Cutting

Square Hole Cutting

Interior architectural wall outlets, HVAC vent covers made of solid stone.
Sink Cutting

Sink Cutting

Precise undermount sink cutouts for marble vanity tops and quartz kitchen counters.
Straight Line Profiling

Straight Line Profiling

Classic architectural baseboards, straight wall cornices, and decorative edge moldings.
Four-sides Chamfer

Four-sides Chamfer

Custom coffee table tops, premium beveled paving stones, and luxury wall caps.
Arbitrary Polygon

Arbitrary Polygon

Bespoke architectural geometric pieces, custom-designed reception desk panels.
Trapezoid

Trapezoid

Specialized landscape paving, angled corner countertops, and unique hearth stones.
Rhombus

Rhombus

High-end luxury floor mosaics, 3D visual effect wall cladding patterns.
Fanshaped

Fanshaped

Spiral staircase stone landings, radial driveway paving, curved patio corners.
Circle

Circle

Round dining tables, solid stone column bases, and circular floor medallions.
Oval

Oval

Oval marble vanity tops, luxury conference tables, and elliptical decorative plaques.
Horse Belly Edge

Horse Belly Edge

Classic and ergonomic kitchen island edges, premium bar tops.
Circular Hole

Circular Hole

Round drop-in sink basins, large plumbing fixture cutouts, cable grommet holes.
Elliptical Hole

Elliptical Hole

Custom elliptical basin drop-ins, specialized architectural pass-throughs.
Drill Hole

Drill Hole

Faucet installation holes, soap dispenser holes, and structural anchor points.
Circular Ring

Circular Ring

Decorative stone borders, rings around structural columns, fire pit caps.
Curved Line Profiling

Curved Line Profiling

Modern wave panels, undulating 3D background walls, and arched doorways.
Arch Line Profiling

Arch Line Profiling

Historical restoration window surrounds, stone bridge arches, curved lintels.
Surface Engraving

Surface Engraving

Detailed tombstones, bespoke bas-relief murals, and custom stone signage.

Premium Applications & Profit Centers

Unlock the most lucrative sectors of the stone industry. The 5-axis capability allows you to transition from basic slab cutting to producing high-margin, bespoke architectural elements.

1. Kitchen & Bath Countertops

Achieve true all-in-one automated fabrication. The machine flawlessly executes sink and stovetop hole cutting, edge chamfering, and surface grooving in a single setup. It easily handles natural marble, quartz, and ultra-hard modern materials like sintered stone and porcelain with absolute precision.

Architectural Facades and Decor

Architectural Facades & Decor

Meet the modern architectural demand for aesthetics and extreme complexity. Fabricate high-value, bespoke items such as curved stone background walls, classical Roman columns, and intricate bas-reliefs, capturing the most profitable segments of the commercial luxury construction market.

3. Stairs & Floor Paving

Deliver premium safety and design. Process custom stair treads by milling precise anti-slip bevels (steplessly adjustable from 0° to 15°). The machine enables multi-face continuous processing, allowing you to cut the stair tread, profile the edge, and route connection holes in one automated run.

Why Partner with MOSCUT for 5-Axis Technology

Investing in a fully automated 5-axis CNC center is a major strategic decision. For high-end machinery of this caliber, the technical training and after-sales service are just as critical as the hardware itself. We don’t just sell equipment; we partner with your factory to ensure you successfully master 3D profiling and automated fabrication from day one.

20 Years of Stone Machinery Manufacturing Experience

20+ Years of Bridge Saws Experience

Building a true 5-axis machine requires mastering structural rigidity. With over two decades of experience manufacturing heavy-duty gantry systems, we engineer our bridge saws to withstand the immense torsional forces generated during high-speed multi-axis interpolation, ensuring decades of zero-vibration precision.

Global On-Site Installation and Calibration

Global On-Site Installation

Deploying a massive 5-axis center requires exact mechanical calibration. We send our senior engineers directly to your global facility. They handle the complete mechanical assembly, level the massive steel frame, and precisely calibrate the absolute servo motors to guarantee micron-level accuracy before production begins.

Specialized 5-Axis CNC Software Training

Specialized 5-Axis Software Training

Advanced hardware is useless without software mastery. Our installation package includes comprehensive, hands-on training for the Italian CNC system. We teach your operators how to import CAD/DXF files, utilize the overhead camera for nesting, and confidently program complex 3D profiles and miter cuts.

24/7 Global Technical Support for CNC Machines

24/7 Global Technical Support

Production downtime is incredibly costly. When you partner with us, you gain access to our responsive, English-speaking engineering support team. Whether you need help troubleshooting a software alarm, optimizing a cutting feed rate, or sourcing a spare part, we provide instant remote diagnostics and support via video call or WhatsApp.

Watch the 5-Axis Bridge Saw in Action

Witness the ultimate fabrication efficiency. See how the smart camera aligns the veining, the vacuum lifter automates material handling, and the 5-axis head performs flawless 45-degree miter cuts in real-time.

Customer Success Stories

See how top fabrication shops around the world have transformed their production speed, accuracy, and profitability by upgrading to our 5-axis CNC technology.

Luxury Countertops in California

“The camera nesting system is a game-changer. We process highly veined Calacatta marble, and being able to match the veins on screen before cutting has eliminated our rework. The vacuum lifter also means one operator can run the entire machine safely.”

– David L., Custom Kitchen Fabricator

Architectural Details in Dubai

“We handle massive commercial facade projects. The 5-axis 3D capability allows us to carve complex wave panels and Roman columns directly from CAD imports. The ESA system is incredibly intuitive, and the machine’s rigidity is unmatched.”

– Tariq M., Commercial Stone Contractor

Sintered Stone Processing in Italy

“Cutting sintered stone requires absolute precision to prevent cracking. The thickness detection tool and perfect servo motor control give us flawless 45-degree miter cuts every time. The enclosed safety doors keep our workshop surprisingly quiet and clean.”

– Marco V., Premium Surfaces Co.

Monument Fabrication in Germany

“We process incredibly thick granite blocks for monuments. The HTQ700GL handles the heavy load effortlessly. The wireless pendant allows our operator to safely inspect deep cuts from the anti-slip grid platform without stopping production.”

– Hans S., Memorial Stone Crafters

Expert Insights on 5-Axis Fabrication

Master the capabilities of your 5-axis machine. Explore our expert articles on optimizing CAD/CAM software, utilizing camera layout for maximum yield, and executing advanced 3D profiles.

Top 10 Technical FAQ for 5-Axis Machines

Investing in a 5-axis CNC center is a major decision. Find answers to the most common technical questions regarding software compatibility, machine capabilities, and installation requirements below.

Software & Smart Capabilities

1. Is the ESA software difficult to learn?

Not at all. While the 5-axis capabilities are advanced, the ESA interface is designed specifically for stone workers. Basic cuts take hours to learn. For 3D profiling, we provide comprehensive training so your operators can confidently import and execute CAD models.

2. What file formats does the machine accept?

The system is highly compatible and seamlessly imports standard DXF and DWG files generated from any major CAD software (like AutoCAD), directly translating them into precise cutting paths.

3. How does the camera layout system handle slab defects?

The high-resolution overhead camera takes a perfect top-down photo of the slab. On the touch screen, the operator can clearly see any natural cracks or fissures and manually drag the digital cut pieces (like countertop sections) around them to avoid the defects.

4. What is the maximum lifting capacity of the vacuum manipulator?

The heavy-duty vacuum lifter is designed for industrial slabs. It typically safely lifts cut pieces weighing up to 500kg (depending on the configuration), moving them gently without damaging the polished surface or the edges.

5. How does the tool thickness detector work?

Before executing a sink cutout or milling operation, the spindle lowers the router bit onto a specialized sensor. The CNC system instantly measures the tool’s exact length and compensates for any wear, ensuring your plunge cuts are perfectly accurate.

Mechanical Setup & Operations

6. Do I need to build a special concrete foundation for this machine?

Yes. Due to the extreme weight and the high-speed movement of the heavy gantry, a proper reinforced concrete foundation with solid side walls is required to ensure absolute vibration-free performance and long-term accuracy.

7. Can it cut ultra-compact sintered stone like Dekton?

Absolutely. The rigidity of the machine, combined with the variable speed control of the servo motors, allows it to execute the slow, controlled plunge cuts required for tension-heavy materials like sintered stone without causing fractures.

8. How do the safety enclosure doors protect the workshop?

The optional stainless steel doors seal off the cutting area. This prevents highly abrasive stone slurry and water from splashing onto the factory floor, significantly reduces operational noise, and physically protects personnel from the high-speed moving gantry.

9. What is the benefit of the anti-slip grid platform?

The elevated grid platform allows the operator to stand at an optimal height to monitor the cutting process. Since it is an open grid, water drains through instantly, preventing slippery puddles and keeping the operator’s boots dry and safe.

10. What kind of power and air supply is required?

The machine requires a stable industrial 3-Phase electrical supply (customized to your local voltage, e.g., 380V/220V) and a consistent compressed air supply to operate the pneumatic components and the vacuum lifter safely.
