Engineered for extreme industrial stability, our CNC Stone Wire Saw Machine is the ultimate solution for squaring, trimming, and dressing massive granite and marble blocks. Transform irregular raw stone into perfectly flat, high-value slabs with ultra-narrow kerf precision and zero blade deflection.Unlock maximum material yield from your quarry blocks.
Using outdated circular saws or flimsy wire cutters to dress raw blocks directly eats into your profit margins. Here are the true costs of inefficient block processing:
Thick circular blades create a massive kerf (cut width), literally grinding your expensive, premium marble blocks into worthless stone dust. Every millimeter lost is lost profit.
Machines with weak gantry rigidity vibrate under the strain of cutting dense granite. This causes the wire to drift, leaving wavy surfaces that make it impossible to secure the block properly on a gang saw later.
Poor wire tensioning control causes the diamond wire to snag and snap frequently when tackling massive blocks. Replacing broken diamond wires constantly drives your operational costs through the roof.
Old equipment requires highly experienced (and expensive) operators to manually adjust cutting parameters and position the block. This manual dependency slows down production and increases human error.
Utilizing premium thin diamond wire, the machine minimizes the cut width. This drastically increases your material yield, allowing you to extract more usable slabs from every single quarry block.
An automated pneumatic/hydraulic tensioning cylinder continuously compensates for wire stretch. This ensures optimal cutting pressure at all times, virtually eliminating wire breakage on heavy granite.
Built on a massive, stress-relieved cast iron/steel twin-pillar structure. This absolute rigidity absorbs all mechanical torque, guaranteeing perfectly vertical, mirror-flat block faces.
Featuring an advanced high-degree of automation. Once the block is aligned, the intelligent CNC system takes over, automatically adjusting feed rates to reduce manual operator intervention and boost factory efficiency.
| ITEM NO. | CNC-2000 | CNC-2500 | CNC-3000 |
|---|---|---|---|
| Max processing size | 3000x2000x1500mm | 3000x2500x1500mm | 3000x3000x1500mm |
| Dimension of worktable | 2500x1300mm | 2500x1300mm | 2500x1300mm |
| Main Motor | 7.5kw | 7.5kw | 7.5kw |
| Water consumption | 4m³/h | 4m³/h | 4m³/h |
| Outline dimension | 6500X6300X3800mm | 7000X6300X3800mm | 7500X6300X3800mm |
| Gross weight | 5000kgs | 5500kgs | 6000kgs |
Take a closer look at the heavy-duty engineering that makes our block squaring machines the most reliable in the industry.
Driven by a robust 15KW main motor, the giant aluminum flywheel provides the relentless kinetic power required to slice through raw granite. The flywheel is dynamically balanced to ensure zero rotational vibration during operation.
Strategically positioned guide pulleys ensure the diamond wire enters and exits the stone at a perfectly vertical angle. This eliminates diagonal drifting over long cuts, guaranteeing a perfectly square block face.
With a generous dimension of 2500x1300mm, this heavy-duty steel table glides on precision rails. Capable of supporting massive block weights, it feeds the stone into the wire with micro-millimeter accuracy.
The machine is controlled via a premium, dust-proof industrial touch screen. The highly intuitive interface allows operators of any skill level to quickly set cutting parameters, monitor tension, and track cutting progress in real-time.
Built with intelligent stone-cutting algorithms. The CNC system automatically calculates and adjusts the optimal downfeed rate based on the resistance of the stone, preventing motor overloads and wire snapping.
Designed for scale. The CNC-3000 model boasts a sprawling gantry span capable of housing giant blocks up to 3000x3000x1500mm, ensuring your factory can process the largest and most profitable quarry stones available.
Our block squaring machines are versatile workhorses designed to handle the diverse physical properties of both soft luxury stones and incredibly dense igneous rocks.
Granite requires immense torque. The machine’s constant tension system and rigid twin pillars allow the diamond wire to bite into the hardest granite blocks without deflection, easily squaring off irregular edges to prepare the block for the gang saw.
Luxury marble is brittle and prone to shattering if subjected to heavy vibration. Our vibration-free drive system ensures a smooth, gentle cut that perfectly flattens the block face while protecting the natural veins and preventing edge chipping.

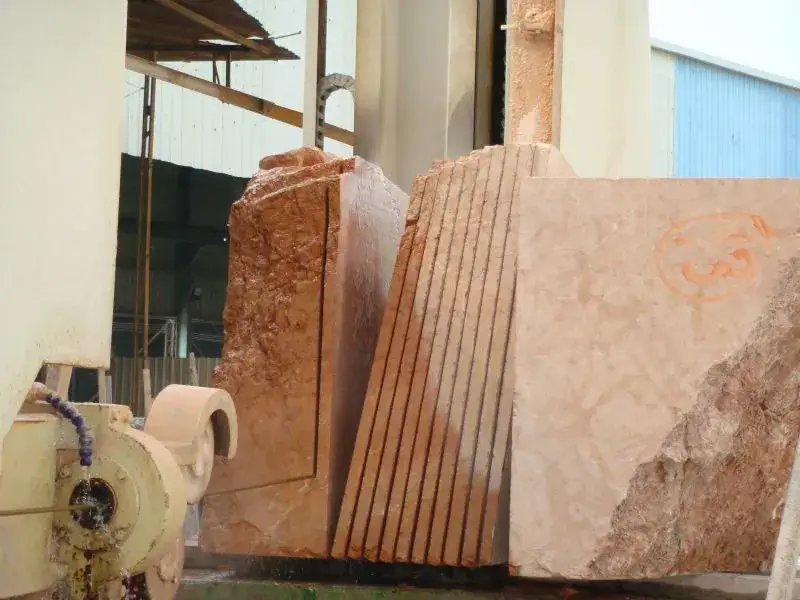

Beyond simple trimming, the precision CNC movement allows the machine to slice raw blocks directly into ultra-thick slabs. This is perfect for producing heavy architectural cladding, monument bases, and custom street furniture right from the quarry block.
See how our heavy-duty wire saw effortlessly slices through massive granite blocks with industrial precision.
“We process high-end Calacatta marble blocks. The thick kerf of our old circular block cutter was grinding away our profits. Switching to the MOSCUT wire saw’s ultra-narrow kerf instantly boosted our usable slab yield by over 15%. The machine pays for itself in saved stone.”
– Antonio R., Marble Quarry Operator
“Trimming 2.5-meter high Indian Red Granite blocks used to be a nightmare; the cuts were always wavy. This twin-pillar machine is so rigid that the dressed faces come out as flat as a mirror. Loading them onto our gang saws is now perfectly secure and effortless.”
– Vikram S., Granite Processing Plant
Block squaring involves cutting away irregular, jagged edges to create a perfect rectangular block. Block dressing specifically refers to shaving a thin layer off the face of a block to make it perfectly flat, usually so it can sit flush against a gang saw’s backing plate.
Cutting speed depends on the specific hardness of the granite and the wire used. On average, a well-tensioned diamond wire on our machine can cut between 1 to 2 square meters per hour in solid granite.
Yes. The heavy-duty motorized worktable is constructed from reinforced steel and mounted on high-load capacity rails, specifically engineered to bear the extreme weight of massive quarry blocks.
A twin-pillar design supports the cutting wire from both sides, eliminating the drooping and vibration inherent in cantilever designs. This dual support is mandatory for achieving perfectly straight cuts on large blocks.
Once the block is loaded, the operator inputs the desired cut dimensions via the HMI touchscreen. The CNC system automatically calculates the optimum feed rate and drives the wire through the stone, reducing the need for constant manual monitoring.
Our automated pneumatic/hydraulic tensioning system is designed to prevent this. If the wire encounters a sudden hard spot, the tensioner cushions the shock and the CNC software automatically slows the feed rate to prevent snapping.
The machine consumes approximately 4 cubic meters of water per hour (4m³/h). Continuous water flow is absolutely critical to flush away stone dust and keep the diamond beads from melting.
This specific block squaring model is optimized for vertical downward cuts (Z-axis). If you require horizontal slicing, please consult our engineering team for horizontally configured wire saw models.
The primary maintenance is replacing the rubber or polyurethane protective liners on the wheels when they wear down. The bearings themselves are sealed and require standard periodic lubrication.
Due to its massive size, the machine is disassembled into major structural components for shipping. Our technical team provides comprehensive diagrams, and we highly recommend our on-site installation and training service to ensure perfect alignment.
