Single Head Stone Edge Profiling Grinding Polishing Machine For Marble Granite

Single Head Stone Edge Profiling Grinding Polishing Machine For Marble Granite

Model YXMB-3200 – The Cost-Effective Solution for Precision Stone Edge Processing

Table of Contents

Introduction & Product Overview

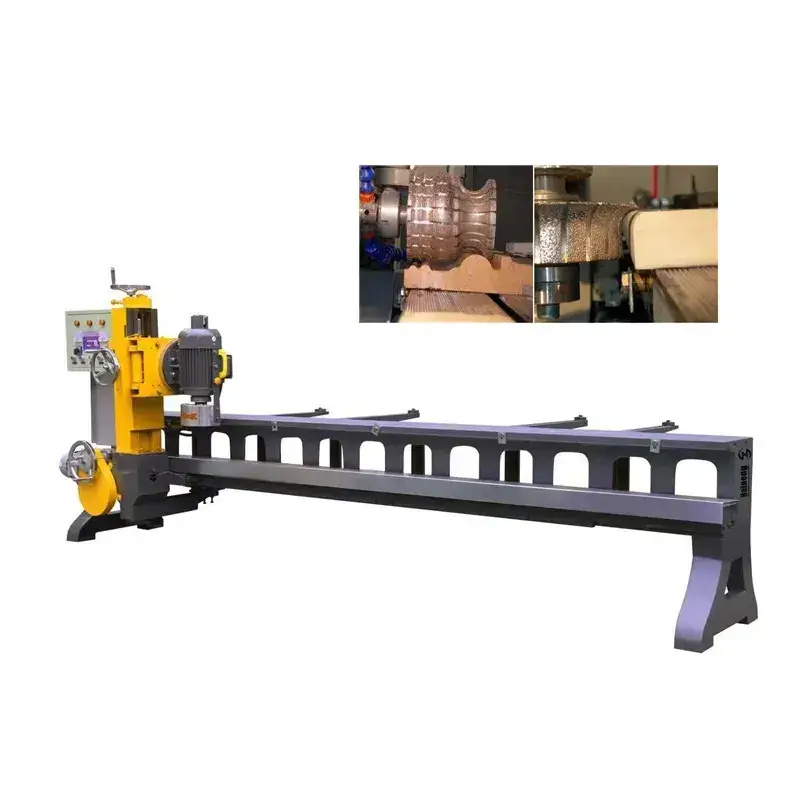

The MosCut YXMB-3200 Single Head Stone Edge Profiling Machine represents a breakthrough in cost-effective stone processing technology. Designed specifically for small to medium-sized stone workshops and fabrication businesses, this versatile machine combines precision engineering with operational simplicity. Unlike expensive multi-head systems, our single-head solution delivers professional results at a fraction of the cost, making premium edge processing accessible to growing businesses.

What sets the YXMB-3200 apart is its remarkable adaptability. By simply changing diamond grinding wheels, operators can switch between shaping, polishing, profiling, and grooving functions – handling everything from basic straight edges to complex French cove profiles. This flexibility eliminates the need for multiple specialized machines, significantly reducing equipment investment while maximizing workshop space utilization.

Why Choose Single Head Technology?

While multi-head machines offer simultaneous processing, they come with substantial costs and complexity. The YXMB-3200 delivers significant advantages:

• Cost Efficiency: Up to 60% lower initial investment compared to multi-head systems
• Simplified Maintenance: Fewer moving parts reduce service requirements and downtime
• Operator-Friendly: Reduced training time with intuitive button controls
• Energy Savings: Single 5.5kW motor consumes significantly less power
• Space Optimization: Compact footprint ideal for smaller workshops

For fabricators handling diverse but not high-volume orders, the YXMB-3200 offers the perfect balance between capability and affordability. Explore our full range of stone polishing machines to complement your edge processing capabilities.

Key Features & Benefits

Multi-Functional Processing Head

The heart of the YXMB-3200 is its versatile processing head that adapts to various applications through quick wheel changes:

• Shaping Capabilities: Process straight, round, ogee, chamfered, French cove, wave, and step edges
• Mirror Polishing: Achieve showroom-quality finishes up to 3000-grit equivalent
• Precision Profiling: Create custom contours with specialized diamond wheels
• Grooving Functions: Cut decorative or functional grooves (3-20mm width, 2-15mm depth)

Industrial-Grade Construction

Built for demanding stone workshop environments:

• Heavy-Duty Frame: High-strength steel structure with vibration-dampening design

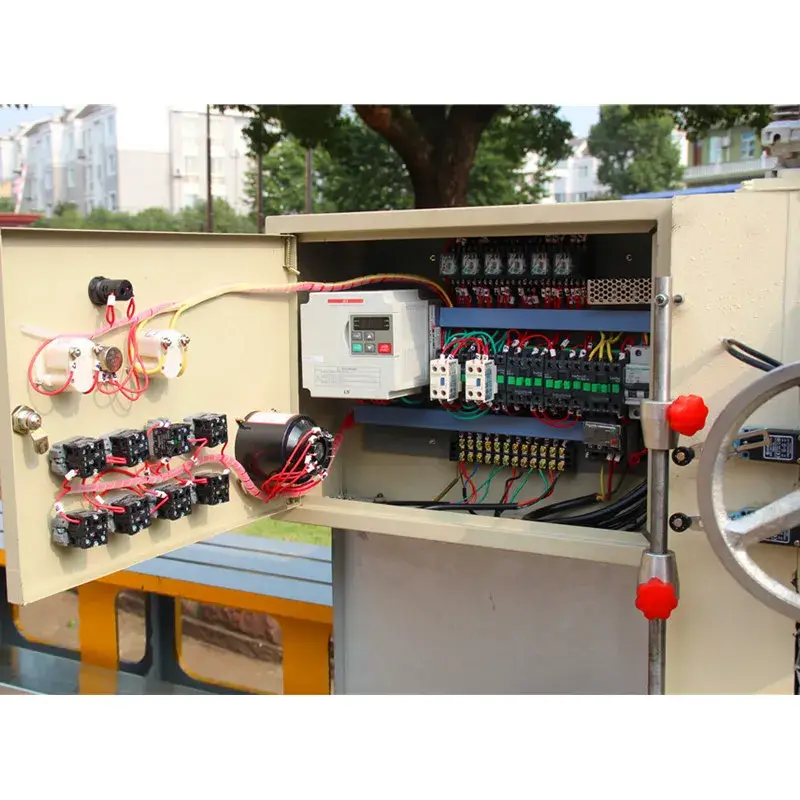

• Water-Cooled Spindle: 5.5kW motor with VFD control (0-4200 RPM) for thermal stability
• Precision Guidance: Industrial linear rails ensure smooth, accurate movement
• Optimized Cooling: High-capacity water circulation system with filtration

Operator-Centric Design

Engineered for productivity and ease of use:

• Intuitive Controls: Ergonomic button interface with preset memory functions
• Tool-Free Adjustment: Quick-change wheel system with M14 universal interface
• Accessible Maintenance: Front-access panels for easy serviceability
• Adaptable Workspace: Fixed table with movable head for flexible processing

Technical Specifications

Operations & Capabilities

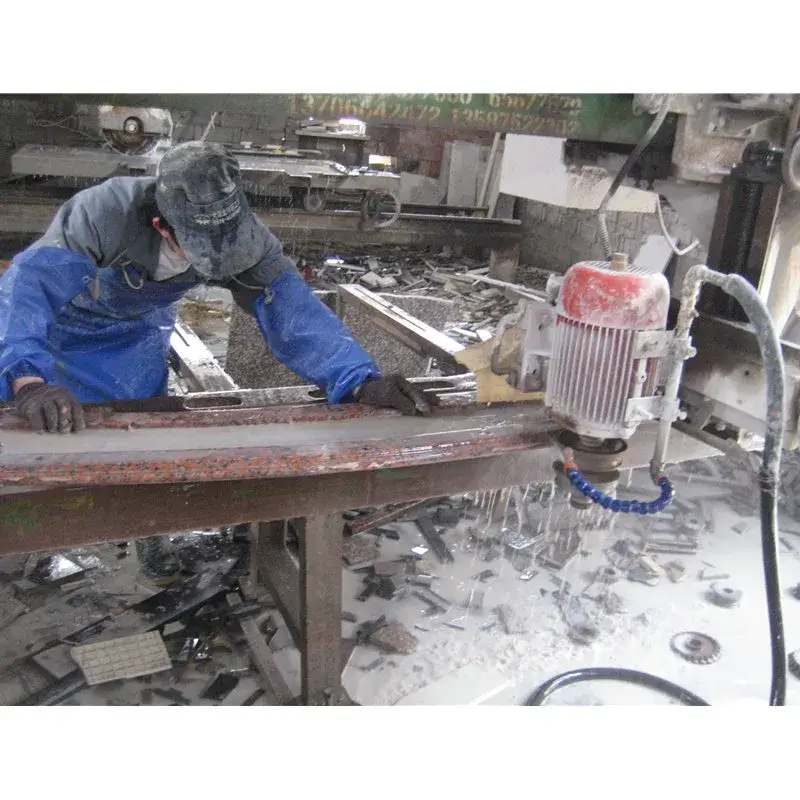

Edge Shaping & Profiling

The YXMB-3200 excels in creating premium edge profiles that add value to stone products. With appropriate diamond wheels, operators can produce:

• Classic Edges: Straight, pencil round, bullnose, demi-bullnose
• Decorative Profiles: Ogee, cove, waterfall, double bullnose
• Modern Designs: Chamfered, beveled, dupont, laminated edges
• Specialty Shapes: Custom contours for architectural elements

Edge Polishing & Finishing

Achieve showroom-quality finishes with the machine’s progressive polishing capabilities:

• Mirror finishes on marble, granite and quartz edges
• Consistent results across entire slab lengths
• Variable speed control for optimal material handling
• Water-cooled operation prevents thermal damage

For complete stone processing solutions, consider pairing with our precision bridge saw machines for cutting accuracy.

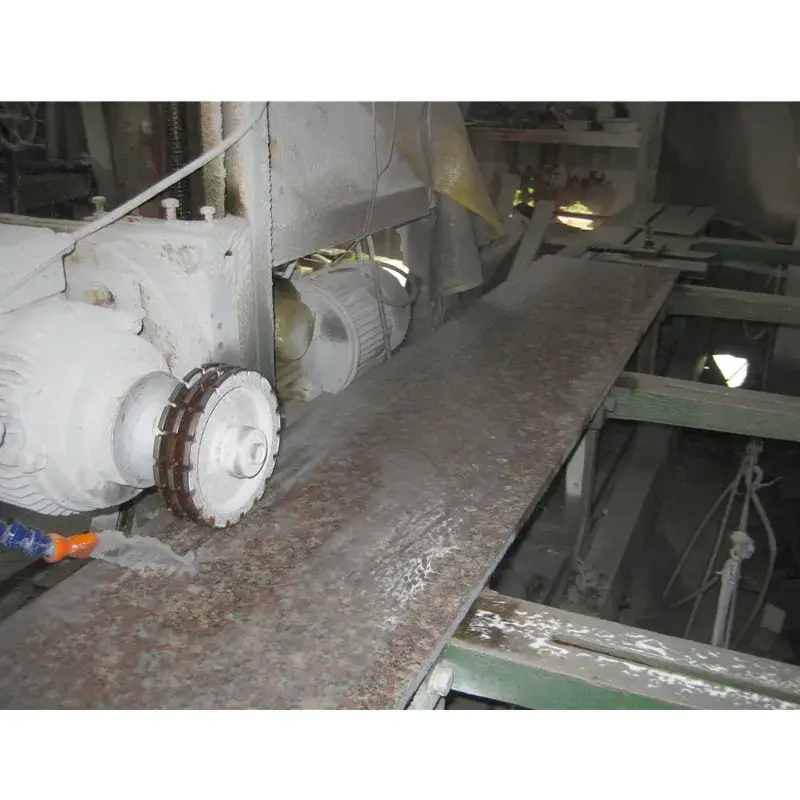

Grooving & Special Applications

Expand your service offerings with precision grooving capabilities:

• Decorative inlays and accent lines
• Functional drainage channels for wet areas
• Anti-slip patterns for commercial applications
• Joint and seam preparation grooves

Competitive Advantages

Engineered for Real Workshops

Drawing from 20 years of stone machinery expertise, the YXMB-3200 incorporates field-proven solutions:

• Patented dust and water management system protects critical components
• Reinforced stress points where competitors experience failures
• Accessible service points reduce maintenance downtime by 40%
• International-grade motors and bearings for extended service life

Operational Efficiency

The YXMB-3200 delivers tangible productivity improvements:

• Quick-change tooling system reduces setup time by 50%
• Preset memory stores parameters for frequent jobs
• Optimized water usage reduces consumption by 30%
• Energy-efficient operation lowers power costs

Unmatched Support

Our commitment extends beyond the sale:

• 1-year comprehensive warranty on all components
• 7/24 technical support with 4-hour response guarantee
• Global spare parts network with express shipping
• Free online training resources and video tutorials

Industry Applications

Countertop Fabrication

Ideal for kitchen and vanity top specialists:

• Create premium edges that increase product value
• Process sink cutouts with precision profiling
• Add drainage grooves to wet area applications
• Consistent results across natural stone and engineered surfaces

Architectural & Building Elements

Expand into commercial and high-end residential markets:

• Stair treads and risers with anti-slip profiling
• Window sills with custom water drip edges
• Wall cladding with decorative edge treatments
• Custom moldings and trim elements

Memorial & Specialty Stonework

Handle intricate work with precision:

• Lettering and decorative elements on memorials
• Custom borders for mosaic installations
• Artistic stone elements with complex profiles
• Restoration work on heritage stone features

ROI & Cost Efficiency

The YXMB-3200 delivers measurable financial benefits:

Most workshops achieve full ROI within 8-14 months through increased capacity and expanded service offerings. The machine’s durability ensures 7-10 years of productive service life with proper maintenance.

Frequently Asked Questions

Technical Questions

Q: What’s the difference between single-head and multi-head machines?
A: Single-head machines like the YXMB-3200 use one motor that performs all operations sequentially by changing wheels. Multi-head systems have dedicated motors for each operation stage. While multi-head machines offer faster processing for high-volume production, our single-head solution provides greater flexibility at a significantly lower investment – ideal for workshops with diverse job requirements.

Q: How difficult is it to change grinding wheels?
A: We’ve designed a tool-free change system that takes under 3 minutes with basic training. The M14 universal interface accepts standard industry tooling, and our quick-release mechanism requires no special tools. Most operators become proficient after 2-3 changes.

Q: What maintenance does the machine require?
A: Daily water system checks, weekly rail cleaning, and monthly bearing lubrication. Major service intervals are 600 operating hours. Our design prioritizes accessibility with front-access panels that reduce service time by 40% compared to competitors.

Operational Questions

Q: How long does it take to train operators?
A: Basic operation takes 1-2 days. Advanced profiling techniques require 3-5 days depending on operator experience. We provide comprehensive video tutorials and operation manuals with each machine.

Q: Can it handle thick granite slabs?
A: Absolutely. The 5.5kW water-cooled spindle and rigid construction are specifically designed for granite up to 150mm thickness. We recommend appropriate diamond wheels for optimal performance on hard materials.

Q: What power supply is required?
A: Standard industrial 380V/3Phase/50Hz power. The machine has a 32A power draw at maximum load. We can provide step-down transformers for regions with different voltages.

About MosCut Stone Machine

With over two decades of stone machinery innovation, MosCut has established itself as a trusted partner for stone fabricators worldwide. Our dedication to practical engineering solutions has made us the preferred choice for workshops seeking reliable, cost-effective equipment without compromising on capability.

Unlike companies that simply rebrand generic machinery, MosCut designs and manufactures purpose-built equipment specifically for stone processing challenges. Our engineering team includes veterans from the stone industry who understand real workshop demands, resulting in machines that deliver exceptional performance in actual working conditions.
