In modern industrial zones where commercial real estate and factory floor space come at a massive premium, equipment footprint is a critical hidden overhead cost. The traditional approach to high-volume stone edge polishing involves massive, wide flatbed machines that dominate the center of a workshop, severely disrupting forklift pathways and material handling logistics. The Vertical Stone Edge Polisher rewrites the rules of factory physics. By utilizing a heavy-duty, upright V-groove conveyor system, the slab is processed in a near-vertical stance (approx. 85 degrees). This gravitational architecture allows the entire 7.3-meter continuous line to be installed dead-flush against a shop wall, reclaiming your center floor space while ensuring that all abrasive slurry instantly drops straight down into the drainage trough, entirely preventing secondary abrasive scratching.
A high-volume commercial contractor in Florida, USA, recently utilized this architectural advantage to secure a massive municipal housing bid. Tasked with fabricating over 3,000 linear meters of quartz kitchen backsplashes and standard flat-edge perimeter countertops for an apartment complex, attempting the job on single-head or CNC routers would have pushed delivery out by three months. By deploying a MosCut 8-Head Vertical Continuous Line, the logistical equation changed overnight. Running at a synchronized feed rate of up to 5 meters per minute, the machine required only one operator to load raw stone strips and one to unload the finished, mirror-gloss pieces. They effortlessly executed perfect straight edges and top/bottom chamfers, delivering the entire contract weeks ahead of schedule and securing exclusive bidding rights for the developer’s future phases.
The Vertical Advantage: Mastering Shop Floor Logistics
Reclaim your center floor space while multiplying your daily linear output exponentially.The operational triumph of the vertical architecture is Continuous Feed Production. Unlike a single-head machine that requires the stone to remain stationary while a tool moves back and forth, the vertical line pulls the stone through a tunnel of active polishing spindles. As long as the operator continues to feed material into the entrance track, the conveyor never stops moving.
Because the stone is standing upright, operators can load slabs onto the machine with the same ergonomic ease as placing a book on a shelf, completely eliminating the need for heavy overhead cranes to lay standard 2cm and 3cm panels flat. The heavy-duty vulcanized rubber clamping belts securely sandwich the stone, absorbing vibrations and ensuring absolute linear stability as it passes through the high-speed milling zone.
Edge Profile Capabilities & Applications
Visualizing the exact architectural profiles your shop can execute.The MosCut Vertical Continuous Line is the undisputed champion of high-volume “Standard” architectural edges, delivering high-speed, mirror-gloss finishes on flat and chamfered profiles. (Note: To process the “Premium” complex curved profiles listed in the second section below, we highly recommend utilizing our MosCut Single-Head Edge Router to achieve the necessary spindle depth and milling geometry).
| Profile Name | Cross-Section (Icon) | Applications & Suitable Stone Products |
|---|---|---|
| 🟢 STANDARD PROFILES (High-Speed Vertical Line Supported) | ||
European | The absolute standard for modern minimalist residential kitchens. Perfect for massive runs of quartz backsplashes, commercial baseboards, and clean perimeter countertops. | |
1/2 Bevel | Offers a sharp, contemporary geometric look while removing sharp hazards. Ideal for modern stair treads, commercial window sills, and safety-focused wall cladding edges. | |
1/4 Round | Provides subtle edge softening to prevent chipping on hard stones. Extensively used in high-traffic commercial countertops and modern granite kitchen islands. | |
1/4 Bullnose | A smooth, slightly rounded top edge with a flat bottom. Extremely popular for public hospitality spaces, hotel bathroom vanities, and durable office reception desks. | |
1/2 Bullnose | A classic curve that showcases the stone’s thickness. Commonly applied to traditional kitchen perimeters, classic bathroom vanity tops, and residential window sills. | |
| 🟠 PREMIUM PROFILES (Requires MosCut Single-Head or CNC Router) | ||
Cove | A sweeping concave curve that adds elegant depth. Often specified for transitional kitchen designs and premium custom dining tables. | |
Cove Dupont | A highly intricate, sharp, and regal edge. Highly sought after for ultra-luxury traditional islands and high-end hotel lobby reception desks. | |
Cove Ogee | Combines a concave recess with a flowing S-curve. The ultimate choice for ornate classic residential vanities and premium marble fireplace surrounds. | |
Deep Ogee | An exaggerated S-curve that highlights thick stone. Perfect for dramatic, heavy marble kitchen islands in classical European-style luxury homes. | |
Demi Bullnose | A completely rounded top that flows into a flat bottom. Used to create smooth, flowing edges that prevent chipping on softer marble countertop installations. | |
Dupont | Features a sharp 90-degree drop followed by a bullnose curve. A staple for sophisticated Victorian-style bathroom vanities and high-end mahogany bar tops. | |
Flat Ogee | A modern take on a classic. Ideal for contemporary luxury kitchens requiring a seamless blend of straight modern lines and subtle classic curves. | |
Ogee | The timeless, flowing S-curve. This is the absolute industry standard for luxury residential countertops, custom dining tables, and high-value architectural pieces. | |
Ogee Bullnose | A prominent S-curve terminating in a full round. Creates a heavy, thick-looking edge perfect for massive center kitchen islands and statement pieces. | |
Waterfall | A multi-tiered, cascading stepped edge. A highly specialized profile used exclusively for premium custom staircases and artistic stone furniture design. | |
Vertical Stone Edging Machine Details Show
Explore the heavy-duty industrial components that guarantee relentless 24/7 continuous production.![Heavy-duty long roller extension rack for supporting large stone slabs on a vertical edge polisher](https://moscut.com/wp-content/uploads/2026/07/Heavy-duty-long-roller-extension-rack-for-supporting-large-stone-slabs-on-a-vertical-edge-polisher.jpg")

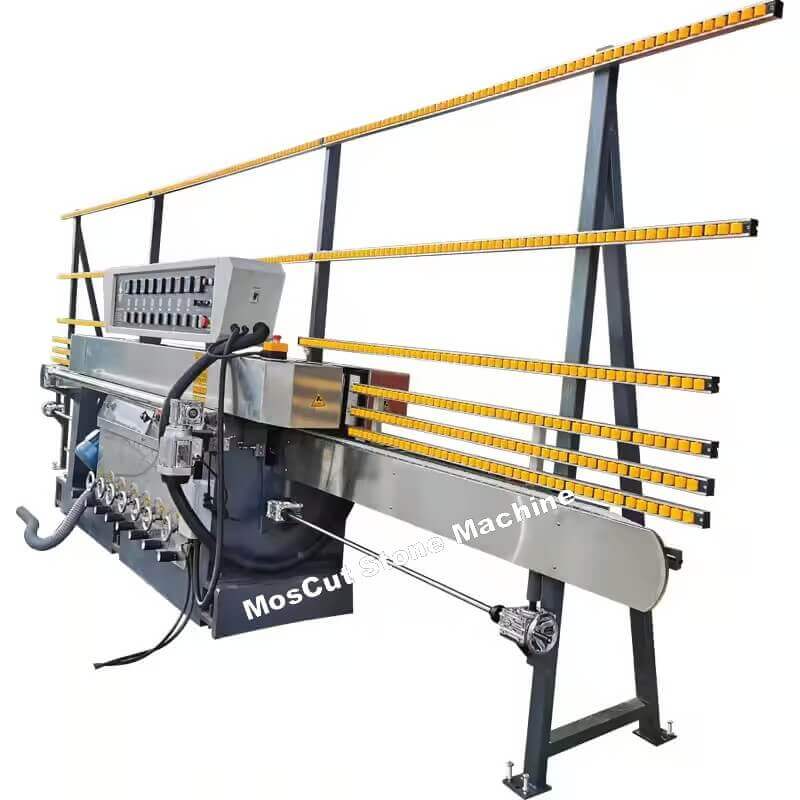

🏗️ Heavy-Duty Roller Support Rack
Handling massive, long stone pieces requires robust structural support. The MosCut vertical line is equipped with an extended, heavy-duty structural frame featuring rows of high-density, omni-directional rollers.
Zero Friction Loading: This towering support rack allows a single operator to effortlessly slide extremely long and heavy architectural slabs (or tall backsplash pieces) into the machine. The smooth rollers guarantee zero friction, completely eliminating the risk of scratching the polished front face of the stone during the feeding process.
🗜️ Vulcanized V-Groove Clamping System
The secret to absolute linear perfection is how securely the stone is held while moving at high speeds. Our machine utilizes a heavy-duty, synchronized dual-belt conveyor system made from premium vulcanized rubber.
Vibration Eradication: Once the stone enters the track, these aggressive gripping pads sandwich the slab with immense pneumatic pressure. This creates a rigid “moving wall” that absorbs all spindle vibrations, preventing the stone from shifting even a fraction of a millimeter. The result? Perfectly straight flat edges and chamfers that are uniform from start to finish.
⚡ Intelligent PLC Control Cabinet
A continuous high-speed line requires flawless electrical orchestration. The MosCut independent control cabinet is meticulously wired using world-class components (such as Schneider or Siemens contactors), ensuring absolute electrical safety in wet factory environments.
Intuitive Command Center: The user-friendly interface allows operators to instantly adjust the variable frequency drive (VFD) for conveyor speed. It also houses the centralized pneumatic manifold, giving the operator independent, granular control over the air pressure (Bar) for every single polishing head.
💎 Sequential Diamond Tooling Array
Witness the core milling zone. The machine houses a formidable row of precisely aligned spindles, transitioning seamlessly from aggressive metal-bonded calibration wheels to ultra-fine resin polishing pads.
Deep Hydro-Cooling: As seen in the macro view, each active spindle is flanked by high-pressure, articulated water coolant hoses. These jets blast directly into the cutting zone, instantly flushing away dense stone slurry and dissipating extreme friction heat. This crucial cooling system prevents artificial quartz from scorching and dramatically extends the lifespan of your diamond tooling.
⚙️ High-Torque Industrial Motors
Driving the sequential tooling array is a formidable bank of heavy-duty industrial electric motors, mounted securely to the rear chassis of the machine.
Relentless Power Delivery: Engineered with IP67-rated waterproof sealing to survive years of splashing slurry, these high-torque motors provide unwavering rotational force. Whether they are pushing a metal wheel through dense 40mm granite or driving a buffing pad across brittle porcelain, they ensure the spindles never stall, guaranteeing a smooth, uninterrupted production flow.
Versatile Industrial Applications
Empowering your fabrication facility to dominate diverse architectural and commercial markets.The MosCut Vertical Continuous Edge Polisher is not just a machine; it is a high-volume manufacturing hub. From standardized high-rise apartment interiors to heavy-duty outdoor public infrastructure, this line provides the foundational edge processing required for mass-market profitability. By combining extreme throughput with absolute linear precision, it allows fabrication plants to effortlessly fulfill massive contracts across multiple stone and masonry sectors. While the vertical line cannot execute complex curved French edges (Ogee), it possesses an absolute monopoly over the high-volume flat edge market. Its specialized V-track clamping mechanism makes it the undisputed champion for specific commercial formats:
🍳 Kitchen Countertops & Vanities
The backbone of residential fabrication. The machine excels at rapidly processing the standard Eased (flat) edges and chamfers required for modern kitchen perimeters, bathroom vanity tops, and sink cut-out borders, ensuring a flawless mirror polish that delights homeowners and developers alike.
🏛️ Commercial Stair Treads
Safety and durability are paramount in public infrastructure. The machine effortlessly processes the thick, leading edges of heavy granite and basalt stair steps (including half-bullnose or chamfered finishes), delivering perfectly symmetrical, code-compliant edges for both indoor and outdoor commercial staircases.
🏢 Wall Cladding & Baseboards
When executing contracts for hotel lobbies, office buildings, or massive apartment complexes, volume is everything. The vertical line is the ultimate tool for mass-producing thousands of linear meters of standardized marble or quartz wall tiles, baseboards, and window sills with zero variation from piece to piece.
📐 Architectural Edge Profiling
Beyond simple straight lines, the machine is capable of shaping a variety of essential architectural profiles. By utilizing specific metal-bonded diamond wheels, fabricators can generate consistent, high-gloss finishes on standardized shapes, providing a rich catalog of edge options for custom design projects.
The Multi-Spindle Relay: From Rough Grinding to Mirror Gloss
A synchronized 8-spindle mechanical assault on surface roughness.📐 45° Chamfering Heads
Positioned strategically along the track, dedicated upper and lower tilted spindles cut precise 1-2mm chamfers (bevels) on the top and bottom corners of the slab simultaneously, instantly removing the sharp, dangerous factory edge as the stone enters the line.
⚙️ Metal Calibration
The aggressive leading flat heads are equipped with heavy metal-bonded diamond wheels. These spindles brutally calibrate the stone, shaving off the uneven saw marks and guaranteeing that every single piece in a 100-piece batch emerges with the exact same width and perfectly flat face.
✨ Sequential Resin Polish
The trailing spindles run a rapid succession of resin polishing pads. From coarse 200 grit up to a final chemical buff, these pneumatic heads apply constant, floating pressure. A rough sawn edge enters the machine and emerges 60 seconds later boasting a flawless 90-degree mirror reflection.
Technical Specifications
Heavy-duty industrial parameters for the MosCut 8-Head Vertical Edge Polisher.| Number of heads | 8 pieces |
|---|---|
| Feed output speed | 0.8m – 5m / minute |
| Max Processing Thickness | 10 – 80 mm |
| Max Processing Length | 1800 mm |
| Total power | 36 KW |
| Body weight | 3100 KG |
| Boundary dimensions | 7300mm * 1100mm * 2000mm |
💰 The Financial Case: The Commercial Bidding Weapon
In the commercial stone fabrication sector, contracts for hotels, hospitals, and apartment complexes are won and lost by pennies per linear meter. If you rely on single-head routers or manual laborers to polish 5,000 meters of baseboard, your labor costs will price you out of the bid. The MosCut Vertical Line completely re-engineers your profit margin through extreme volume:
MosCut Vertical Continuous Line = 10x Single-Head Daily Output = Lowest Cost Per Linear Meter
By outputting up to 5 meters per minute continuously, the vertical line drastically drops your Cost of Goods Sold (COGS). It allows you to submit highly aggressive, winning bids for massive commercial projects while still retaining a larger net profit margin than competitors using slower, traditional machinery.
High-Definition Working Showcase
Witness the sheer continuous throughput of the MosCut Vertical Edge Polisher in real-world fabrication.Global Commercial Success Showcase
How major fabrication plants dominate their local markets with MosCut vertical architecture.
Florida, USA: Mass Backsplash Production
A high-volume contractor utilized the vertical track to process 3,000 linear meters of narrow quartz backsplashes. The secure V-groove clamping prevented the narrow strips from tipping, allowing them to finish the massive apartment complex order 3 weeks ahead of schedule.
Dubai, UAE: Luxury Hotel Baseboards
Tasked with supplying Eased-edge marble baseboards for a 5-star hotel lobby, this facility ran their MosCut vertical line at 4 meters per minute. The continuous feed guaranteed perfectly identical chamfers across 10,000 individual pieces.
Munich, Germany: Maximizing Floor Space
Operating in an expensive industrial park, this factory could not afford the floor space for a horizontal line. By installing the 7.3-meter vertical machine flush against their back wall, they doubled their output without sacrificing their forklift logistical routes.
London, UK: Slashing Labor Overhead
By replacing 6 manual straight-edge polishing stations with a single 8-head MosCut vertical line, this commercial kitchen supplier reduced their labor overhead by 70% while entirely eradicating the “wavy edge” quality control issues that plagued their previous bids.
Related Technical Insights
Master the dynamics of high-speed continuous stone processing.
Mastering Pneumatic Pressure in Continuous Polishers
Learn how to precisely balance the air cylinder pressure across 8 spindles to prevent pad glazing, avoid resin burn, and achieve a flawless 90+ degree reflection on continuous lines.
Read More
The Secret to Mass Producing Narrow Backsplashes
Discover why horizontal machines struggle with 6cm wide stone strips and how the vertical V-groove clamping track is the ultimate architectural solution for mass backsplash production.
Read More
How Continuous Output Wins Commercial Bids
Break down the mathematical equation of “Cost per Linear Meter.” See exactly how high-speed continuous machinery allows you to outbid competitors on massive hotel and apartment contracts.
Read More
Calibrating the Perfect Top & Bottom Chamfer
An Eased Edge is incomplete without safe, symmetrical bevels. Learn how to align the dedicated front chamfering spindles on your vertical line to eliminate sharp, dangerous factory edges instantly.
Read MoreStop Turning Down High-Volume Commercial Contracts
Reclaim your center floor space and multiply your daily output exponentially. Upgrade to the MosCut Vertical Continuous Edge Polisher to dominate the market in standard flat-edge countertops, backsplashes, and baseboards.
Request a Custom Configuration QuoteFrequently Asked Questions: Vertical Continuous Lines
1. Can a vertical edge polisher cut complex profiles like an Ogee or Dupont?
No. Vertical continuous machines are highly specialized for rapid processing of flat/straight edges, top and bottom bevels (chamfers), and simple pencil rounds. For complex architectural curves like Ogee or Full Bullnose, you must use a Single-Head Router or a Heavy-Duty Horizontal Line.
2. What is the narrowest strip of stone (like a backsplash) this machine can process safely?
Because of the secure V-groove pneumatic clamping track, the MosCut vertical line can safely grip and polish stone strips as narrow as 60mm (6cm). This makes it the absolute industry standard for mass-producing thin kitchen backsplashes and commercial baseboards without the stone tipping over.
3. Will the heavy clamping belts scratch the polished front surface of the stone?
No. The clamping tracks are manufactured from premium, non-marking vulcanized rubber. Provided that the operator keeps the tracks clean and free of abrasive diamond slurry or sharp stone chips, the belts will securely grip the slab without leaving any marks on the finished face.
4. What happens if I feed a stone slab that varies slightly in thickness?
The machine is designed to handle this. The leading metal-bond spindles act as a calibration unit, shaving the edge down to ensure uniform width. Additionally, the polishing spindles are pneumatically controlled; the air cylinders act as shock absorbers, allowing the polishing pads to float and adapt to minor surface undulations automatically.
5. How many operators are required to run this 7.3-meter machine?
For maximum efficiency on high-volume runs, a continuous line requires two operators: one stationed at the front to feed the raw slabs into the track, and one at the exit to inspect the gloss and unload the finished pieces onto an A-frame cart.
6. Can this machine process heavy 80mm thick stone slabs?
Yes, the MosCut Vertical Line has a maximum processing thickness of 80mm. However, when running ultra-thick material, operators must significantly slow down the feed output speed (closer to 0.8m/min) to give the 36KW motors sufficient time to mill the massive surface area without stalling.
7. How do I adjust the polishing pressure for different stones like soft marble vs. hard quartz?
The machine features a centralized pneumatic control manifold. The operator can independently adjust the air pressure (Bar) supplied to each individual spindle head. Soft marble requires lower pressure to avoid gouging, while dense quartz requires precise, steady pressure to achieve gloss without burning the resin.
8. Does the machine consume a lot of water?
Yes, continuous multi-head lines require substantial hydro-cooling to flush away slurry and prevent heat build-up across 8 working spindles. It is highly recommended that your factory uses a closed-loop water recycling and filtration system to drastically reduce your environmental footprint and water costs.
9. Why does the spec sheet state a “Max Processing Length of 1800mm”?
This typically refers to the minimum length required to engage the full clamping track securely, or the maximum length for a specific automated loading table configuration. In a pure continuous feed setup, the actual length of the stone is theoretically unlimited as long as it is properly supported upon entry and exit.
10. How often do the vulcanized rubber conveyor belts need replacing?
With proper daily maintenance—specifically ensuring that broken stone shards do not jam the track and that the belts are washed down at the end of the shift—premium vulcanized belts on MosCut machines typically endure 3 to 5 years of heavy industrial shifts before requiring replacement.
