Introducing the ultimate powerhouse for heavy-duty cut-to-size operations. Engineered for extreme rigidity and relentless cutting power, our Stone Slab Cutting Saw is designed to slice through massive granite, marble, and quartz jumbo slabs with zero hesitation. Built by industry experts, for industry leaders.
Lightweight machines flex under pressure. When cutting 100mm thick granite, a vibrating bridge causes the blade to wobble, resulting in slanted cuts and severe edge chipping.
Underpowered spindle motors simply cannot handle the density of hard quartzite. Pushing a weak saw too hard leads to jammed blades and burnt-out electronics.
Manually loading a 1,000kg jumbo slab onto a flat, non-tilting table is incredibly dangerous, causing frequent material breakage and severe operator injuries.
Worn-out V-tracks and poor linear guides cause the cutting head to drift over a 3-meter cut, resulting in out-of-square countertops that won’t fit during installation.
Weighing 5.6 Tons, the massive cast-iron structure absorbs all cutting vibrations, ensuring absolutely straight cuts.
The industrial-grade spindle motor drives through the hardest natural stones without dropping RPM or stalling.
Safely and effortlessly load jumbo slabs directly from your A-frame with the heavy-duty hydraulic lift.
Execute X and Y-axis cross-cuts instantly without having to manually lift and spin the heavy stone slab.
Oil-immersed, sealed linear guide rails ensure a perfectly straight travel path, guaranteeing ±0.1mm accuracy over 3 meters.
Supports up to a 400mm blade, providing the clearance needed to process thick architectural blocks and monuments.
| Item Name | Value (Unit) |
|---|---|
| Blade Diameter | 400 mm |
| Main Motor Power | 15 KW |
| Size of Table (L*W) | 3200 * 2000 mm |
| Table Rotation | 0 – 90° |
| Table Moveup (Tilt) | 85° (For easy slab loading) |
| Max Cutting Size (L*W*H) | 3200 * 2000 * 100 mm |
| Cutting Speed | 15 ㎡/h |
| Machine Overall Dimensions | 6000 * 5000 * 2800 mm |
| Weight | 5.6 T |
When slicing through a massive 3-meter granite slab, even a millimeter of deviation can result in a ruined countertop or an un-square architectural panel. Traditional V-track rollers wear down quickly when exposed to the harsh, abrasive mixture of stone dust and cooling water, leading to blade drift and curved cuts over time.
To completely eliminate this problem, our stone slab cutting saw is equipped with heavy-duty, oil-immersed linear guide rails. These precision guides are meticulously sealed to keep out corrosive stone slurry and moisture. Because the bearings travel smoothly in a continuous bath of lubricating oil, mechanical friction and wear are virtually zero. This advanced engineering guarantees a perfectly straight travel path, delivering an astonishing cutting accuracy of ±0.1mm over a full 3-meter span, year after heavy-duty year.
When you are cutting stone slabs that measure over 3 meters in length, absolute vertical stability of the blade is everything. Traditional machines often rely on a single sliding plate mechanism to lower the cutting head. Under extreme mechanical torque, this single-plate design is prone to vibration, flexing, and jamming, which severely compromises both cutting accuracy and operator safety.
To solve this, our stone slab saw is engineered with an advanced synchronous 4-pillar hydraulic lifting system. Instead of relying on one vulnerable iron plate, the entire cutting head is smoothly driven up and down by four heavy-duty hydraulic cylinders simultaneously. This robust design delivers uncompromising stability. After hundreds of hours of rigorous factory stress testing, our 4-pillar hydraulic system has been proven to reduce mechanical failure rates by 35% compared to traditional sliding mechanisms, guaranteeing perfectly square, chip-free edges on the largest jumbo formats available on the market.
No two fabrication shops are identical. To ensure you have the perfect saw for cutting stone slabs, we offer deep customization options tailored to your specific production requirements and material thickness.
While the standard model is optimized with a 400mm blade for up to 100mm cutting depth, our engineering team can configure the spindle, motor power, and heavy-duty blade guards to accommodate larger blade diameters. Whether your daily production relies on standard 20mm quartz countertops or massive, thick architectural granite blocks, we customize the machine’s cutting capacity to maximize your factory’s output and efficiency.
We understand that in the high-volume stone fabrication business, machine downtime costs your factory thousands of dollars a day. When you partner with MOSCUT, you are backed by a robust after-sales supply chain designed to keep your blades spinning and your business profitable.
We maintain a comprehensive, ready-to-ship inventory of critical machine components. From premium electrical contactors and PLC motherboards to heavy-duty hydraulic valves and cylinders, we guarantee rapid global express delivery. You will never be left waiting weeks for a crucial part to get your production line back up and running.

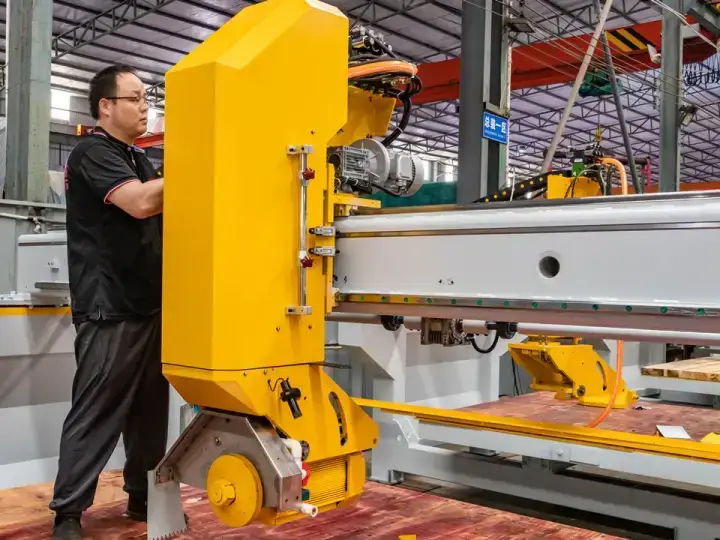

Buying a 5.6-ton heavy-duty machine internationally shouldn’t mean you are left on your own to figure out the setup. We provide comprehensive local installation support to ensure your equipment is installed safely and calibrated for absolute precision right out of the box.
Our certified technicians—along with our authorized regional service partners—can be dispatched directly to your facility. We handle the complete machine assembly, perfectly align the 4-pillar hydraulic lifting system, and finely calibrate the laser guide. Most importantly, we provide hands-on operational and maintenance training for your entire staff, ensuring your team is confident and productive from day one.
Partnering with a true manufacturer means partnering with industrial capability. Our manufacturing campus features a High-Capacity Assembly Line specifically designed for building and testing large-scale stone machinery.
Equipped with heavy-duty overhead cranes and precision CNC boring mills, our factory machines every cast-iron bridge and steel track to aerospace tolerances. Every single slab saw is fully assembled, powered on, and rigorously test-cut on real stone before it is ever packed into a shipping container. You are buying directly from the source of quality.
Operator safety and electrical reliability are built into the DNA of our machinery. To guarantee long-term operational stability, the electrical control cabinet is equipped exclusively with premium components from internationally renowned brands (such as Siemens, Schneider, or Omron). Utilizing these top-tier electronics ensures exceptional durability, highly responsive controls, and drastically reduces the risk of electrical failures during heavy-duty daily use.
On the safety front, the machine features strategically placed emergency stop buttons, thick blade guard protectors, and an automated hydraulic safety lock designed to prevent the 85° tilting table from dropping in the event of a sudden power loss. Fully CE Certified for the global market.
“We specialize in thick granite memorials. Our old saw would stall out halfway through a 100mm block. The 15KW motor on this MOSCUT slab saw doesn’t even flinch. It powers through the stone beautifully, and the 5.6-ton frame means we get zero blade wobble. Incredible machine.”
– David T., Monument Fabricator
“The 85-degree hydraulic tilting table was a game-changer for our shop. We used to struggle with forklifts and straps to lay jumbo quartz slabs flat. Now, we just lean it against the table and press a button. It has saved us time and completely eliminated back injuries.”
– Marcus J., Countertop Production Manager
With the standard 400mm blade installed, the machine can comfortably process natural stone up to 100mm thick. For thicker requirements, contact us for custom blade guard configurations.
Absolutely. The 3200 x 2000 mm worktable is reinforced with heavy-gauge steel and powered by dual industrial hydraulic cylinders, easily lifting and supporting slabs weighing over 1,500 kg.
Yes. To maximize your “cut-to-size” efficiency, the machine is equipped with a highly visible infrared laser alignment guide, ensuring the operator can perfectly align the cut before the blade drops.
Given the heavy-duty 15KW main motor and auxiliary systems, the machine requires a standard industrial 3-Phase power supply. We can configure the voltage (e.g., 380V, 415V, 220V 3-Phase) to match your country’s local grid during manufacturing.
Yes. The machine features a variable frequency drive (VFD) allowing the operator to adjust the feed rate depending on the density of the material, achieving up to 15 ㎡/h on standard granite.
The worktable sits on a heavy-duty rotary bearing. By engaging a switch on the control panel, the table mechanically rotates and locks exactly at 90 degrees, allowing you to make perfectly square cross-cuts without moving the stone.
The precision linear guides are enclosed and feature an automatic oil-lubrication system. Your operator simply needs to ensure the oil reservoir is filled, and the machine will self-lubricate the critical moving tracks.
Yes. While the standard overall dimension is 6000 x 5000 x 2800 mm, as a direct manufacturer, we can modify the bridge length or table size to accommodate your factory floor constraints. Just speak to our engineering team.
Yes, we can supply premium 400mm diamond blades specifically formulated for granite, marble, or quartzite along with your machine shipment, ensuring you are ready to cut on day one.
Because we assemble and test the machine entirely in our factory before shipping, re-assembly on your site is highly streamlined. With a standard forklift and our remote/on-site guidance, typical installation and calibration take only 1 to 2 days.
