MosCut single-head automatic stone edge polishing machine profiling various of edge shapes

Single Head Stone Edge Polishing Machine
Edge Shaping Profiling & Polishing

In the evolving landscape of stone countertop fabrication, Agile Manufacturing has become the defining survival metric for boutique and startup workshops. While high-volume commercial producers rely on 20-meter-long multi-head lines, compact custom shops simply do not have the floor space or the rigid, identical production runs to justify that capital footprint. However, continuing to rely on manual wet polishing is a guaranteed path to shrinking margins. Manual processing introduces uncontrollable human variables—leading to uneven pad wear, slow output, and the dreaded “wavy edge” phenomenon that premium clients immediately reject. By integrating the MosCut Single-Head Automatic Edge Polisher, custom fabricators cross the crucial threshold into automation, securing absolute linear perfection with a footprint of less than 4 meters.

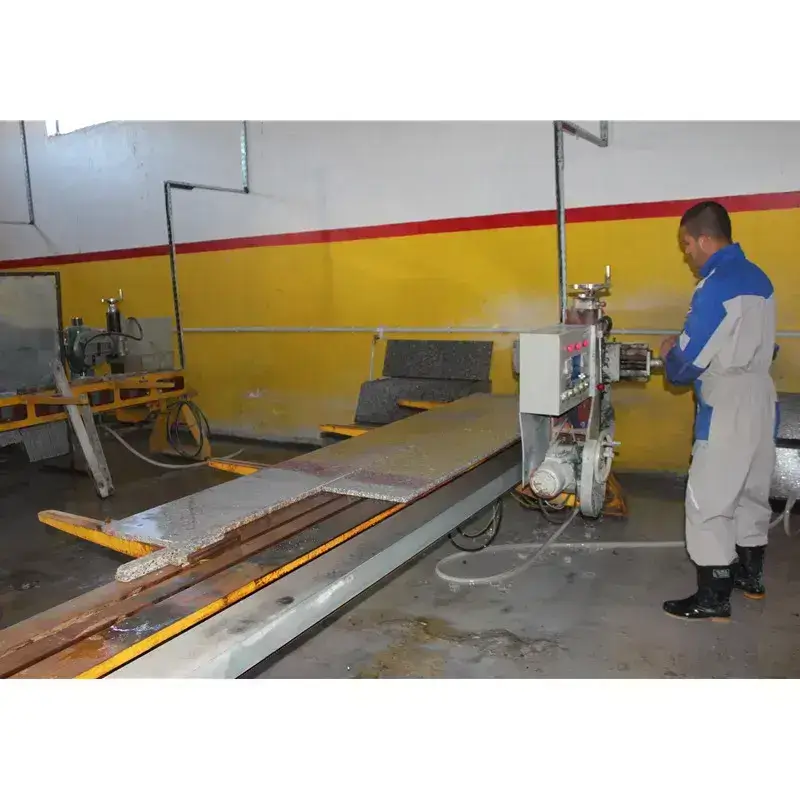

A boutique architectural stone studio in Verona, Italy, perfectly illustrates this transition. Operating out of a historic, space-restricted facility, they specialized in highly customized marble islands requiring complex Ogee and Dupont edges. Relying entirely on master stonemasons with manual grinders, their lead times bloated to four weeks, and worker fatigue was causing severe order backlogs. By deploying the MosCut Single-Head Router, they capitalized on the machine’s “quick-change” spindle system. Without needing any complex CNC programming, a standard operator could swap from a modern straight edge to a classic French curve in under two minutes. The heavy-duty tracking rail eliminated manual tracking errors entirely, allowing the shop to cut labor costs by 60% while matching the mirror-gloss quality of their massive industrial competitors.

The Agility Advantage: Quick-Change Spindle & Easy Operation

Switch from a modern straight edge to a classic Ogee profile in less than two minutes.

The core commercial pain point for small-to-medium fabrication shops is fragmented production. You might process a 2cm quartz straight edge in the morning, and a 4cm granite Full-Bullnose in the afternoon. Large multi-head lines require hours of downtime to completely reconfigure 14 different spindle heads for a new profile.

The MosCut Single-Head Polisher is designed for supreme agility. It features an ergonomic, quick-release spindle shaft. An operator simply loosens the locknut, drops the profiling wheel, and slides on the next grit or shape in seconds. Furthermore, the machine is governed by a highly intuitive micro-computer (PLC) control panel. There is absolutely no complex CNC coding or software mapping required. A general shop laborer can be trained to set the travel limits, adjust the pneumatic pressure, and run production independently in half a day, entirely freeing your facility from dependency on high-salaried artisan stonemasons.

Operator utilizing the quick-change spindle system on the single head stone router to swap diamond profiling wheels rapidly

Precision Edge Mastery: Core Capabilities

Execute flawless straight runs and intricate architectural profiles with absolute linear stability.

🪨 Stone Edge Grinding & Profiling

Equip designated metal-bonded diamond router bits to execute heavy, aggressive stock removal. The rigid cast-iron rail system guides the wheel perfectly to mill French edges, Full Bullnose, or half-rounds in a single pass, accommodating material thicknesses up to 60mm effortlessly.

✨ Marble Granite Edge Polishing

By sequentially swapping resin polishing pads (from 50 grit up to 3000 grit and Buff), the machine’s constant travel speed ensures that every previous scratch pattern is perfectly erased. This mechanical consistency guarantees a 90+ degree mirror gloss that manual hand-grinding can never replicate.

📐 Stone 45-Degree Chamfering

By adjusting the spindle angle or equipping a dedicated chamfering wheel, the machine slices perfectly straight 45-degree bevels. This is the ultimate prep-tool for creating seamless, high-end “Mitered Drop Edges” (waterfall islands) with zero manual deviation.

📏 Flawless Linear Calibration

Say goodbye to the “wavy edges” caused by human muscle fatigue. The combination of heavy-duty structural rails and a secure pneumatic slab clamping table ensures that the stone edge is ground to an absolutely uniform thickness from the first millimeter to the last.

Tooling Versatility: The Infinite Profile Library

A single capital investment that unlocks your shop’s full architectural catalog.

For custom fabrication studios, the greatest strength of the single-head architecture is its boundless expandability. You are not locked into producing only straight edges. By simply purchasing and swapping standard diamond router bits, your compact workshop gains the comprehensive profiling catalog of a massive industrial plant.

Comprehensive visual guide to stone edge profile shapes including Bullnose, Ogee, Dupont, Waterfall, and Mitered edges processed by single-head edge polishers
The Edge Profiling Arsenal: Equip the corresponding diamond tooling to instantly carve Eased, Bevel, Ogee, or Laminated profiles on standard or 60mm thick slabs.

Versatile Machining Applications: A 3-in-1 Fabrication Arsenal

Discover how a single, highly adaptable workstation empowers your shop to execute complex profiles, precision miters, and custom vanity polishing.
Thick metal-bonded diamond router bit milling a complex architectural stone edge profile

🪨 Edge Profiling & Sequential Polishing

The foundation of the single-head router is its immense milling stability. By equipping specialized, heavy-duty diamond router bits (as shown), the machine effortlessly carves deep architectural shapes into solid stone—such as the classic French Ogee, Full Bullnose, or Dupont profiles.

Once the geometric shape is calibrated, operators simply switch to the progressive resin polishing pads. The machine’s automated, unwavering linear tracking ensures that every scratch is perfectly erased, ultimately delivering a flawless, 90+ degree mirror gloss that manual hand-grinders simply cannot replicate.

Red heavy-duty spindle motor tilted at 45 degrees cutting a mitered chamfer on a granite slab

📐 Precision 45° Edge Chamfering

Seamless epoxy joints on luxury “waterfall” kitchen islands demand absolutely perfect geometry. The MosCut single-head machine features an adjustable, tilting spindle housing.

By angling the heavy-duty motor to exactly 45 degrees and attaching a diamond cutting blade, operators can slice flawless mitered chamfers (海棠角) on dense granite and engineered quartz. This automated tracking completely eliminates the micro-chipping and wavy deviations typical of manual bridge saw cuts, guaranteeing a seamless drop-edge lamination.

Operator manually guiding the articulated spindle motor to polish the flat surface of a small stone sink vanity

✨ Small Vanity Sink Surface Polishing

Ultimate versatility means adapting to custom, delicate pieces. By disengaging the rigid automatic linear drive, the articulated spindle arm can be manually guided by the operator.

This manual-override flexibility allows your craftsmen to effortlessly polish the flat top surfaces of small bathroom vanities or touch up the perimeters around custom sink cutouts. It provides the heavy-duty torque of an industrial spindle combined with the agile, human touch required for intricate, small-scale surface finishing.

Precision Engineering: Inside the Powerhouse

Discover the industrial-grade components designed to endure relentless daily production in harsh, wet environments.
Heavy-duty 4.75kw main spindle motor for stone edge polishing machine

⚙️ Heavy-Duty Spindle Motor (3.75kW – 4.75kW)

At the heart of the MosCut Single-Head Router is a massive, high-torque industrial spindle motor. Engineered specifically for the extreme resistance of stone milling, this motor delivers unwavering rotational force (up to 3800 RPM) to slice through dense granites and 60mm artificial quartz without stalling.

Absolute Waterproofing: Stone fabrication is a wet, slurry-filled process. Our spindle motors are housed in a specialized IP67-rated cast-iron shell, featuring multi-stage labyrinth seals that completely isolate the internal copper windings from water ingress and microscopic stone dust, guaranteeing years of continuous, burn-free operation.

CE certified electrical control cabinet for automatic stone router

⚡ Intelligent Electrical Control Cabinet

We reject the chaotic, dangerous wiring found in cheap machinery. The MosCut electrical cabinet is a masterpiece of organized, CE-certified engineering. Utilizing world-class contactors, relays, and overload protectors (such as Schneider or Siemens), the brain of the machine is built for absolute stability and safety.

Intuitive Operation & Safety: The exterior control panel is designed for the common laborer—featuring highly visible, clearly labeled mechanical switches and variable speed dials. Furthermore, the cabinet is completely sealed against shop humidity and incorporates an emergency interlock system that instantly kills power to the spindle if a jam or water starvation event is detected.

Technical Specifications

Engineered data for the MosCut Single-Head Automatic Router.
Max Processing Length3300 mm
Max Processing Width600 mm
Max Processing Thickness60 mm
Gross Power3.75 kw – 4.75 kw
Grinding Wheel Rotation Speed1900 / 3800 rpm
Travel Speed (Feed Rate)0.38 – 1.92 m/min (Adjustable 50HZ)
Shipping Weight1500 kg
Overall Dimension (L x W x H)3800 x 1500 x 1510 mm

💰 The Financial Case: Escaping the Manual Trap

Many startup fabricators hesitate to buy machinery, believing that paying hourly laborers is cheaper. This is a fatal miscalculation of overhead. Manual wet-polishing consumes abrasive pads asymmetrically (wasting 40% of the pad life), severely bottlenecks daily output, and exposes owners to high liability for worker compensation claims due to Hand-Arm Vibration Syndrome (HAVS). Consider the baseline MosCut formula:

1 Single-Head Machine = 3 Skilled Hand Polishers + 0% Wavy Edge Rejections + 0% Vibration Injury Claims

With its remarkably low capital entry point, the MosCut Single-Head Polisher typically pays for itself completely within 6 to 8 months, strictly funded by the reduction in payroll hours and the elimination of wasted diamond resin pads.

High-Definition Working Video

Watch the single-head router execute agile, precise linear profiling in real-time.

Global Success Showcase

Real-world boutique fabrication facilities scaling their throughput with MosCut.

Related Technical Insights for Single-Head Edge Polishing

Master agile fabrication, mitered drops, and rapid tooling strategies for your compact shop.

Ready to Scale Your Countertop Production?

Whether you need the agile versatility of our Single-Head Router for a compact shop, or the high-speed continuous throughput of our Multi-Head Lines for commercial volume, we have the exact architecture for your factory floor.

View All Automatic Edge Polishing Machines

Frequently Asked Questions

1. Do I need to know complex CNC programming to operate this machine?
Not at all. The MosCut single-head edge polisher is designed for immediate shop integration. It utilizes a highly intuitive PLC/manual control panel. Operators simply set the physical travel limits of the rail and adjust the spindle speed. A general laborer can master it in a single afternoon.
2. How long does it take to fully polish a 3-meter straight stone edge?
While processing time depends on the stone’s hardness, the machine travels at roughly 1 meter per minute. Because a single-head machine requires multiple passes (changing pads from 50 grit up to 3000 grit), it typically takes about 25 to 35 minutes to perfectly finish a 3-meter edge, which is still dramatically faster and infinitely higher quality than manual hand polishing.
3. Are special proprietary tools required to change the profiling wheels?
No. The machine features an ergonomic quick-change spindle shaft. The operator only needs a standard heavy-duty wrench to loosen the main locknut, allowing them to swap diamond wheels or resin pads in less than two minutes.
4. What is the absolute maximum stone thickness this machine can process?
The maximum rated processing thickness for the MosCut Single-Head Router is 60mm. This makes it perfect for processing standard 2cm/3cm slabs, as well as executing heavy built-up (laminated) mitered drop edges for luxury kitchen islands.
5. Can this machine polish the interior cutouts for a kitchen sink?
No. This machine operates on a linear tracking rail designed strictly for straight, external outer edges. To polish interior curved sink cutouts, you will need to utilize a CNC Workcenter or rely on manual wet polishing tools.
6. Can the machine cut a precise 45-degree mitered edge for waterfall joints?
Yes! You can equip a specialized 45-degree diamond chamfering wheel, or on specific adjustable models, tilt the spindle housing to slice a flawless, straight miter. The rigid track ensures zero deviation, creating the perfect geometry for seamless epoxy lamination.
7. Will this machine burn or turn artificial quartz edges white?
No, provided you use the proper settings. Resin burn occurs when localized friction heat melts the polymer in the quartz. The single-head machine prevents this by combining a constant, automated travel speed with a direct, high-pressure hydro-cooling water feed that instantly dissipates heat.
8. What type of electrical power supply is required to run the machine?
The machine requires standard industrial 3-phase power to support its robust 3.75kw to 4.75kw main spindle and travel motors. Please specify your local factory voltage and frequency (e.g., 220V/380V/480V, 50Hz/60Hz) during ordering so our engineers can configure the electronics appropriately.
9. Will this single-head machine completely eliminate the “wavy edges” from manual polishing?
Absolutely. Wavy edges are caused by the human arm applying inconsistent pressure and dipping into softer parts of the stone. This machine locks the stone in place and travels along an ultra-rigid steel track, guaranteeing absolute linear perfection and flat calibration every time.
10. How often should the tracking guide rails be lubricated or maintained?
To ensure smooth travel and prevent mechanical stuttering, the linear guide rails and bearings should be wiped clean of stone slurry and lubricated with industrial machine oil or grease on a weekly basis, depending on your factory’s production volume.
