Automatic Horizontal Stone Edge Polisher
The Physics of 3D Milling & Flatbed Stability: Why can’t standard vertical machines process deep curves? Milling an Ogee or Full Bullnose profile requires diamond router bits to aggressively bite into the stone across three dimensions (top, side, and bottom). This intense stock removal generates violent vibrations. A vertical line simply cannot secure the slab well enough. The MosCut Horizontal Edge Polisher changes the game by utilizing absolute gravity. By laying massive stone slabs 100% flat on an ultra-wide vulcanized conveyor belt—clamped from above by a continuous row of pneumatic pressure beams—the stone becomes perfectly immobilized. This absolute rigidity allows our heavy-duty spindles to act like automated CNC routers, tearing through dense granite to sculpt flawless curves without micro-fracturing the stone.
Scaling Luxury: A Verona Success Story: A premium custom fabrication plant in Verona, Italy, secured a massive contract for a luxury resort involving 500 oversized marble kitchen islands, all requiring a perfectly uniform Full Bullnose edge. Using traditional manual routers and single-head machines, they were maxing out at 15 linear meters a day. Upon integrating the MosCut multi-head horizontal continuous line, they combined profiling and polishing into one seamless pass. The machine steadily churned out hundreds of meters of polished Bullnose edges daily. They delivered the project weeks ahead of schedule, with a 100% acceptance rate on edge geometry consistency, effectively cementing their reputation in the high-margin architectural sector.
🛡️ The Flatbed Advantage: Absolute Milling Stability
When routing deep architectural curves into hard materials like quartz and granite, vibration is your greatest enemy. Even a millimeter of chatter will result in a wavy, unacceptable profile. The MosCut horizontal platform utilizes a “sandwich” clamping method. The slab rests completely flat on a high-friction conveyor, while a synchronized overhead gantry lowers powerful pneumatic pressure rollers directly onto the slab’s surface. This total-area compression traps the stone, allowing the heavy-duty shaping spindles to plunge into the edge with immense torque. Whether you are processing a narrow 300mm backsplash or a massive 1800mm wide kitchen island, the machine handles it with total immunity to vibration.
Machine Anatomy: Engineered for Industrial Dominance
Examine the heavy-duty components that guarantee decades of flawless 24/7 operation.Intuitive Command Center
Rejecting fragile touchscreens that fail in wet, dusty environments, MosCut utilizes a heavy-duty industrial control panel. It features independent motor toggles, an instant Emergency Stop (E-Stop), and most importantly, highly visible pneumatic pressure gauges with manual regulator knobs. This allows the operator to instantly “feel” and adjust the exact Bar pressure for individual polishing heads on the fly.
Top-Tier Electrical Infrastructure
Open the electrical cabinet and you’ll find meticulous, military-grade wiring. We exclusively use international top-tier contactors and relays (such as Schneider/Chint). Every single spindle motor and water valve is protected by an independent thermal overload relay. This hyper-organized electrical architecture guarantees safety during 24/7 continuous operation and makes maintenance and troubleshooting brilliantly simple.
Heavy-Duty Spindle Motors
The heart of the profiling power. A tight array of high-torque industrial induction motors drives the spindles via rugged V-belts. The motors feature heavily ribbed alloy casings for maximum heat dissipation during grueling, deep-cut milling operations. When the front profiling wheels bite into 40mm thick granite, these motors deliver unwavering RPMs without stalling or shuddering.
Anti-Vibration Conveyor System
The foundation of precision is a massive, extra-wide vulcanized rubber conveyor belt that provides immense friction grip. Suspended directly above the belt is a continuous beam housing independent pneumatic top rollers. These rollers act as a hundred strong hands, clamping the stone down firmly against the red belt, totally neutralizing the aggressive upward forces generated during 3D curve routing.
Edge Profile Capabilities: Master Every Architectural Curve
Leverage the absolute stability of the flatbed to execute deep, heavy-stock removal without a millimeter of vibration.European
The standard commercial flat edge with micro-bevels. The flatbed’s absolute gravity ensures perfectly squared faces, while rigid chamfering motors cut 1.5mm safety bevels without deflection.
1/2 Bevel
A dramatic 45-degree sloping cut. Executing this requires intense lateral force. The machine’s pneumatic top-rollers lock the slab down, allowing heavy stock removal without shifting.
1/4 Round
A softened top edge. The horizontal array distributes the milling load across multiple profiling spindles, carving the radius smoothly without inducing chatter marks in the stone.
1/4 Bullnose
A slightly deeper top curve than the 1/4 round. The pneumatic floating resin pads seamlessly trace this convex shape, generating a brilliant 90-degree gloss on the rounded margin.
1/2 Bullnose
A fully rounded top with a flat bottom. Ideal for the high-torque capability of the flatbed. The massive conveyor friction resists the upward lifting force generated by the diamond routers.
Cove
A classic concave scoop. Deep plunge milling requires absolute zero-vibration. The rigid machine frame ensures the concave valley remains flawlessly smooth and free of milling ridges.
Cove Dupont
A concave top flowing into a sharp 90-degree drop. The horizontal clamping ensures the slab is totally secure, preventing the fragile stepped edge from chipping during aggressive passes.
Cove Ogee
Complex concave-to-convex geometry. Processed seamlessly by equipping front spindles with specialized metal bonds, turning hours of manual CNC labor into a one-minute automated run.
Deep Ogee
An extended, dramatic S-curve requiring massive stock removal. The 22kW total machine power ensures the spindles never stall, even when plowing through 40mm of absolute black granite.
Demi Bullnose
An elongated, sweeping convex curve. The independent pneumatic controls allow operators to dial in ultra-low pressure on the finishing heads to polish this long curve without distortion.
Dupont
A sharp 90-degree vertical drop merging into a convex curve. The rigid overhead pressure beams lock the stone, ensuring the sharp top corner survives the intense milling vibrations intact.
Flat Ogee
A small flat ledge leading into a sweeping S-curve. The multi-head array allows simultaneous calibration of the flat step and profile milling of the curve in a single continuous pass.
Ogee
The timeless architectural S-curve. By laying the slab completely flat, the machine ensures the delicate, thin protruding tips of the Ogee curve remain razor-sharp and perfectly symmetrical.
Ogee Bullnose
A complex S-curve that wraps completely underneath the stone. The flatbed architecture overhangs the edge precisely, exposing the full depth for aggressive 3D router penetration.
Waterfall
Multiple cascading convex steps. Automated sequential spindles mill each descending tier with absolute CNC-level precision, a task that would take hours to execute manually.
Applications: Mastering High-End Architectural Projects
Where the Horizontal Line dominates the commercial market.Luxury Kitchen Islands
In ultra-luxury homes, wide, oversized kitchen islands are the centerpiece. The horizontal flatbed allows massive slabs to be loaded directly by a vacuum lifter without the danger of standing them vertically. It flawlessly shapes and polishes heavy Ogee or Waterfall edges on slabs up to 1.8 meters wide, a feat impossible on standard vertical lines.
Five-Star Hotel Vanities
Commercial hospitality projects require scale. When a hotel needs 800 identical vanity tops with safety Half-Bullnose edges, manual processing is too slow and inconsistent. The MosCut horizontal line spits out identical, perfectly rounded, and high-gloss vanities at several meters per minute, turning a nightmare logistical challenge into a highly profitable, streamlined run.
Architectural Stair Treads & Window Sills
Public commercial buildings demand thick, durable edges for stair treads (often 30mm to 50mm thick) equipped with anti-slip grooves and heavy chamfers. The horizontal machine possesses the sheer horsepower to mill through thick, dense exterior granites effortlessly, delivering razor-straight, unyielding edges designed for decades of heavy foot traffic.
Unlocking Premium Profiles: Beyond the Flat Edge
Dominate the high-margin luxury market with automated curve processing.⭕ Full Bullnose
The hallmark of premium commercial and residential installations. The initial spindles utilize segmented metal diamond wheels at precise angles to progressively mill the square edge into a perfect half-circle, followed by resin pads to bring it to a 90-degree gloss.
〰️ Ogee & Dupont (French Edges)
Eliminate hours of manual CNC routing. Equip the heavy-duty shaping spindles with profile-specific metal router bits. The machine cuts the complex “S” shape in a single heavy pass, allowing subsequent floating heads to polish the intricate curves perfectly.
🧱 Thick Laminated Edges
The flatbed architecture is ideal for processing heavy, 40mm to 60mm built-up (mitered or stacked) edges. The intense clamping force ensures the glue seams remain perfectly intact while the heavy-duty motors calibrate and polish the thick profile.
The Multi-Spindle Sequence: Shaping to Mirror Polish
A synchronized factory within a single machine.1. Heavy Profiling (Metal)
The first 1 to 3 spindles are rigid (non-floating) and equipped with metal-bonded diamond shaping wheels. Their sole job is brutal stock removal—milling the raw square edge into the desired curve (Bullnose, Ogee) using raw mechanical force.
2. Sequential Honing (Resin)
The middle spindles transition to resin-bonded pads with medium grits. They use moderate pneumatic pressure to follow the newly cut curve, erasing the deep scratch marks left by the metal tools and preparing the surface for high gloss.
3. Micro-Floating Polish
The final buffing heads utilize extremely low, highly elastic pneumatic pressure. They lightly “kiss” the curved profile, generating intense friction without altering the shape, ultimately achieving a spectacular 90+ degree mirror finish.
Technical Specifications
| Specification / Item Name | Value | Unit |
|---|---|---|
| Number of Polishing Heads | 9 | pcs |
| Feed Output Speed | 1 — 23 | meters per minute |
| Processing Thickness (Min-Max) | 10 — 60 | mm |
| Maximum Process Width | 1800 | mm |
| Total Power Consumption | 22 | kW |
| Total Machine Weight | 5000 | kg |
| Machine Dimensions (L x W x H) | 6100 x 1900 x 2000 | mm |
📈 The ROI Formula: Scaling Luxury Production
Horizontal Continuous Line = (The Precision of a CNC) + (The Speed of a Vertical Line).
Let’s run the numbers: Manually shaping and polishing one meter of an Ogee edge takes an experienced fabricator roughly 1 hour. Using a CNC bridge saw takes about 20 minutes but ties up a vastly more expensive machine. The MosCut Horizontal Line can output that same meter of flawless Ogee in under 1 minute. When bidding on massive commercial projects—like five-star hotel presidential suites or luxury high-rise countertops—this machine slashes your specialized labor costs to near zero, giving you a monopolistic pricing advantage over competitors still relying on manual routers.
High-Definition Working Videos
Watch the immense power and stability of the horizontal flatbed in action.Global Success Showcase
See how top-tier fabrication plants scale their luxury production.
Verona, Italy: 500 Luxury Kitchen Islands
Dubai, UAE: Five-Star Hotel Vanities
Texas, USA: Architectural Stair Treads

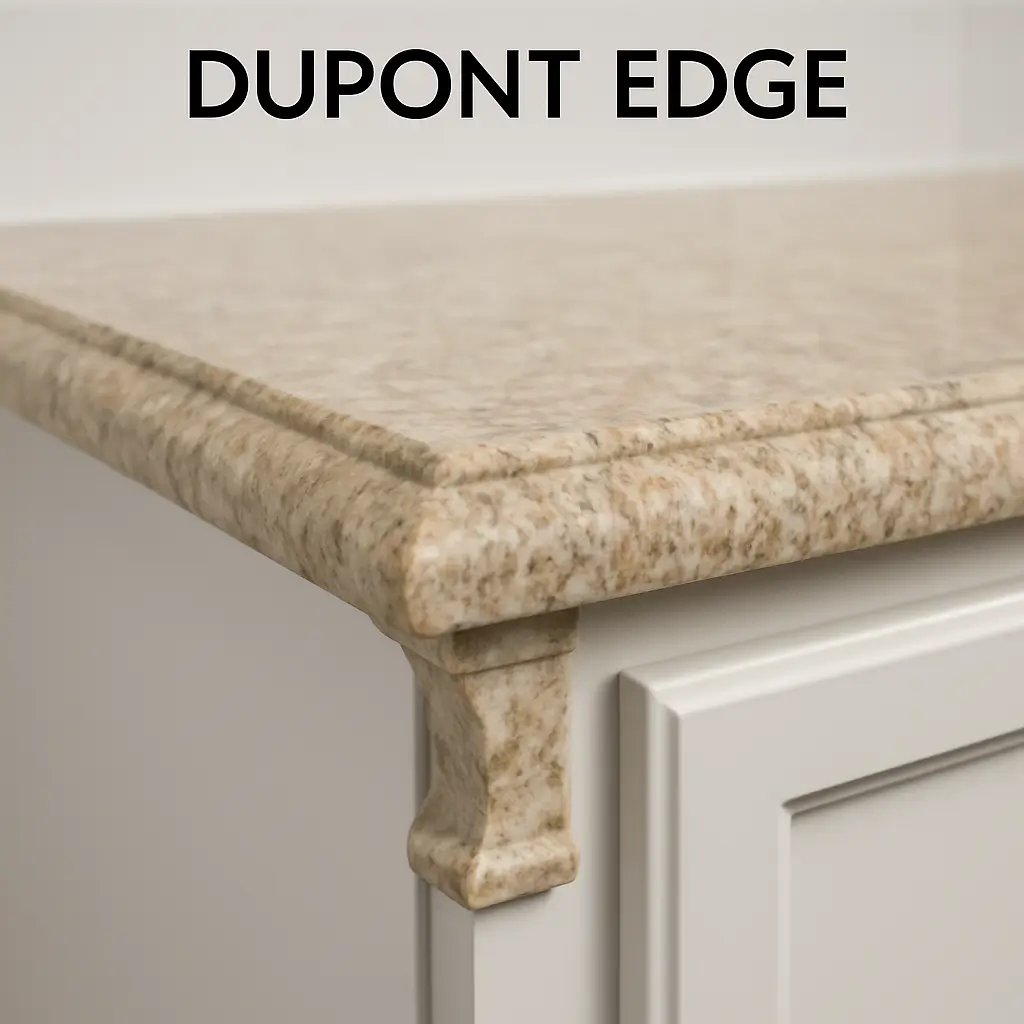

Sydney, Australia: Dupont Edge Masterpieces
Related Technical Insights
Deep dive into the operational secrets of flatbed edge profiling.Explore the Complete MosCut Edge Polishing Ecosystem
While the Horizontal flatbed dominates complex architectural curves, your shop might require the high-speed straight edge production of our Vertical Line or the extreme flexibility of our Single-Head machines. Browse our full collection to find the exact automated solution tailored to your production volume.
View All Edge Polishing MachinesFrequently Asked Questions
1. Can the horizontal machine process simple straight flat edges as well?
Absolutely. While it excels at complex curves, by simply changing the tooling from profiling routers to standard flat grinding and polishing pads, the horizontal machine functions as a highly stable, ultra-fast straight flat edge polisher.
2. How long does it take to change the tooling from an Ogee profile to a Full Bullnose?
For an experienced operator, swapping out the metal profiling wheels and adjusting the pneumatic pressure settings for the subsequent resin pads typically takes between 15 to 30 minutes, allowing for multiple profile runs in a single workday.
3. Will the pneumatic top pressure rollers scratch or crack fragile marble surfaces?
No. The top pressure rollers are made of resilient, non-marking polyurethane. Furthermore, because their downward force is controlled by elastic pneumatic cylinders, they apply firm but gentle pressure that adjusts to the stone, completely preventing surface cracking.
4. What feed speed should I use when profiling 40mm thick dense granite?
When executing deep profiling cuts (like an Ogee) on thick, dense granite, you must lower the conveyor speed. We recommend starting at the lower end of the range, around 1 to 2 meters per minute, to allow the metal routers sufficient time to mill away the heavy stone mass safely.
5. Why does this machine weigh 5000 kg?
Mass equals stability. The 5-ton weight is derived from the ultra-thick cast iron and steel alloy frame. This immense mass is required to absorb the severe vibrations generated when 9 high-torque motors are simultaneously grinding against solid rock. A lighter machine would violently shake itself apart.
6. Does the horizontal polisher require a dedicated concrete foundation?
While it is incredibly heavy, it typically does not require a specialized, recessed concrete pit (unlike some massive block cutters). A standard, reinforced, and perfectly leveled industrial factory floor is sufficient to support its weight and operation.
7. How often does the vulcanized conveyor belt need to be replaced?
With proper maintenance—specifically, keeping the track free of sharp stone shards and ensuring correct tension—a high-quality vulcanized belt on a MosCut machine can last for several years of continuous daily operation before requiring replacement.
8. Can it polish engineered quartz without burning the resins inside the stone?
Yes. Engineered quartz is sensitive to heat. The machine’s intuitive control panel allows you to significantly dial back the pneumatic pressure on the high-speed buffing heads, and the heavy-duty water jets provide immense cooling, completely preventing resin scorch marks.
9. What is the maximum width of the stone slab this machine can accommodate?
The MosCut horizontal polisher can handle exceptionally large pieces. Its flatbed architecture allows it to securely process slabs with a maximum width of up to 1800mm, making it perfect for oversized commercial kitchen islands and grand conference tables.
10. Are the electrical components easy to replace if a breakdown occurs?
Yes. We strictly utilize globally recognized, standardized electrical components (such as Schneider or Chint contactors and relays). If a switch or relay fails, your local industrial electrician can source an exact replacement in almost any country within hours, eliminating costly machine downtime.
